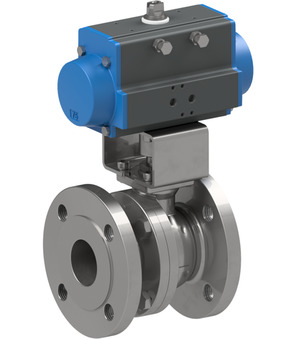

Flanged ball valve with pneumatic actuator BA044-25-T0

Name: Flanged ball valve with pneumatic actuator BA044-25-T0
Brand: STASTO
SKU: BA044-25-T0
Price: 654.2 EUR
Availability: InStock

Flanged ball valve with pneumatic actuator Series BA044; Fire-safe; TA-Luft; Length According to EN558−1R27; Body Zinc plated steel; Ball 1.4301; Seals PTFE/Graphoil/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+160°C; Nominal diameter 25mm; Pressure range 0-40bar; Flange PN40; Length 125mm; Actuator PAS0635; Safety position NO

Intrastat No.: 84818081
Country of origin: Italy
Weight: 6.635 Kg
Short Itemnumber: BA04425T0

flanged ball valve with pneumatic actuator series BA044; fire-safe; TA-Luft; length according to EN558−1R27; body zinc plated steel; ball AISI 304; seals PTFE/Graphoil/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+160°C; nominal diameter 25mm; pressure range 0-40bar; flange PN40; length 125mm; actuator PAS0635; safety position NO

654,20 € 654.2 EUR 654,20 €

excl. tax

DN
- 25 mm
Length
- 125 mm
Flange
- PN40
Pressure range
- 0...40 bar
Actuator
- PAS0635
Brand
- STASTO

This combination does not exist.

Availability:

See availability

Add to cart

Technical specifications

Pressure range	0...40 bar
DN	25 mm
Flange	PN40
Length	125 mm

All specifications (5)

Specifications
Spare Parts

Pressure range	0...40 bar
DN	25 mm
Flange	PN40
Length	125 mm
Brand	STASTO

760001-25 x 1.0 Pcs

Flanged ball valve 760001-25

Flanged ball valve Series 760001; ATEX II 2 G/D; Fire-safe; TA-Luft; Length According to EN558−1R27; Full bore; Body Zinc plated steel; Ball 1.4301; Seals PTFE/Graphoil/FKM; Medium temperature -10...+160°C; With locking device; Nominal diameter 25mm; Pressure range 0-40bar; Flange PN40; Length 125mm

PAS0635-B x 1.0 Pcs

PAS0635-B

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Pinion turned by 90°; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 10,6Nm

RI3525 x 1.0 Pcs
