Flanged ball valve with pneumatic actuator Series BA045-D Store

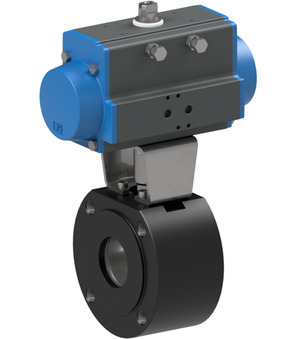

Flanged ball valve with pneumatic actuator BA045-40-D0

Name: Flanged ball valve with pneumatic actuator BA045-40-D0
Brand: STASTO
SKU: BA045-40-D0
Price: 651.3 EUR
Availability: InStock

Flanged ball valve with pneumatic actuator Series BA045; Flange PN40; Body Steel; Ball 1.4301; Seals PTFE-reinforced/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...40bar; Nominal diameter 40mm; Length 64mm; Actuator PAD075

Intrastat No.: 84818081
Country of origin: Italy
Weight: 9.45 Kg
Short Itemnumber: BA04540D0

flanged ball valve with pneumatic actuator series BA045; flange PN40; body steel; ball AISI 304; seals PTFE-reinforced/FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; pressure range 0...40bar; nominal diameter 40mm; length 64mm; actuator PAD075

651,30 € 651.3 EUR 651,30 €

DN
- 40 mm
Length
- 64 mm
Actuator
- PAD075

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

dimension
DN	40 mm
Length	64 mm
characteristics
Actuator	PAD075

720008-40 x 1.0

Flanged ball valve 720008-40

Flanged ball valve Series 720008; Flange PN40, Full bore; Body Steel; Ball 1.4301; Seals PTFE-reinforced/FKM; Pressure range 0...40bar; Medium temperature -20...+160°C; Nominal diameter 40mm; Length 63,5mm

Add to Cart

PAD075 x 1.0

Pneumatic actuator PAD075

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 75mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 66Nm

Add to Cart

RI3009 x 1.0
