flanged ball valve with pneumatic actuator BA049-50-S0-02

Price.

1.099,50 €
Flanged ball valve with pneumatic actuator Series BA049-S0-A Store
  1. Products
  2. Armatures
  3. Ball valves - automatically operated
  4. Other materiales - A03
  5. Flanged ball valve with pneumatic actuator Series BA049-S0-A
  6. BA049-50-S0-02
flanged ball valve with pneumatic actuator BA049-50-S0-02
BA049-40-S0-A-ABS53-EPC02400-1-EB0X05
BA049-40-S0-A-ABS53-EPC02400-1-EB0X05
ár kérésre
Flanged ball valve with pneumatic actuator BA049-50-S0-A
Flanged ball valve with pneumatic actuator BA049-50-S0-A
1.182,46 €
1.182,46 €

flanged ball valve with pneumatic actuator BA049-50-S0-02

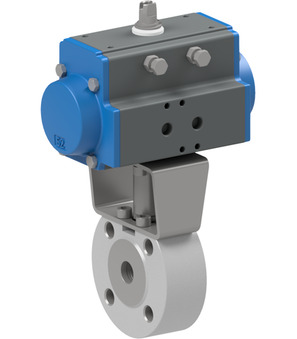

flanged ball valve with pneumatic actuator series BA049; flange PN16; body, ball AISI 316; seals PTFE/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; pressure range 0...16bar; nominal diameter 50mm; length 82mm; actuator PAS1005; actuator mounted 90° twisted

Intrastat No.: 84818081
Country of origin: Italy
Weight: 14.31 Kg
Short Itemnumber:BA04950S002
https://www.stasto.hu/web/image/product.template/217211/image_1920?unique=07bf1b6

flanged ball valve with pneumatic actuator series BA049; flange PN16; body, ball AISI 316; seals PTFE/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; pressure range 0...16bar; nominal diameter 50mm; length 82mm; actuator PAS1005; actuator mounted 90° twisted

1.099,50 € 1099.5 EUR 1.099,50 €

ár kérésre

  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • DN
  • Length
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Contact material
  • Material of case
  • Coil
  • Actuator

This combination does not exist.

Availability:
Contact Us
dimension
DN 50 mm
Length 82 mm
design
Design ATEX
characteristics
Actuator PAS1005
Flanged ball valve 721000-50
721000-50 x 1.0
Flanged ball valve 721000-50
Flanged ball valve Series 721000; Flange PN16, Full bore; Body, Ball 1.4401; Seals PTFE/FKM; Pressure range 0...16bar; Medium temperature -20...+160°C; Nominal diameter 50mm; Length 82mm
Add to Cart
PAS1005-B x 1.0
PAS1005-B
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Pinion turned by 90°; Diameter 100mm; Flange ISO5211 F07/F10; Female square 17mm; Torque at 5,5bar 42,3Nm
Add to Cart
