BA050-20-0H-01
Ball valve with pneumatic actuator BA050-20-S0-01
Ball valve with pneumatic actuator BA050-20-S0-01
ár kérésre
PV34-80
PV34-80
706,50 €
706,50 €

BA050-20-0H-01

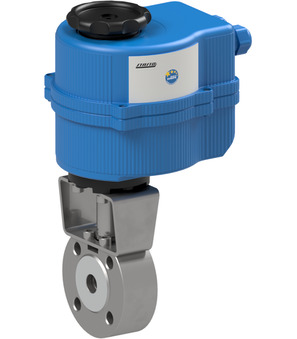

Flanged ball valve with electrical actuator; For steam; Flange PN16; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Medium temperature -20...+198°C; Pressure range Steam 0...15bar; Nominal diameter 20mm; Length 40mm; Operating time 10s; Voltage 100-240VAC; V-Ball 90°

Intrastat No.: 84818081
Country of origin: Italy
Weight: 3.693 Kg
Short Itemnumber:BA050200H01
https://www.stasto.hu/web/image/product.template/181247/image_1920?unique=07bf1b6

flanged ball valve with electrical actuator; for steam; flange PN16; body, ball AISI 316; seals PTFE-reinforced/FKM; medium temperature -20...+198°C; pressure range steam 0...15bar; nominal diameter 20mm; length 40mm; operating time 10s; voltage 100-240VAC; V-ball 90°

999.999,00 € 999999.0 EUR 999.999,00 €

ár kérésre

  • DN
  • Length
  • Actuator

This combination does not exist.

Availability:
Contact Us
dimension
DN 20 mm
Length 40 mm
characteristics
Actuator PAS0855
Flanged ball valve BA050-20-L-A-01
BA050-20-L-A-01 x 1.0
Flanged ball valve BA050-20-L-A-01
Flanged ball valve Series BA050-L-A; For steam; ATEX II 2 G/D; Fire-safe; TA-Luft; Flange PN16; Full bore; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Pressure range Steam 0...15bar; Medium temperature -20...+198°C; Nominal diameter 20mm; Length 40mm; V-Ball 90°
Add to Cart
Electrical actuator VB015-H
VB015-H x 1.0
Electrical actuator VB015-H
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 15Nm; Operating time 10s; Flange ISO5211 F03/F05-Stern 11 mm; Voltage 100-240VAC; Protection class IP65
