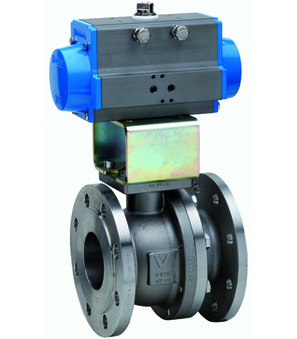

Flanged ball valve with pneumatic actuator BA051-125-S0-A

Flanged ball valve with pneumatic actuator BA051-125-S0-A

Flanged ball valve with pneumatic actuator Series BA051; Fire-Safe/Antistatik According to ATEX/TA−Luft; Length According to EN558−1R27; Body, Ball 1.4408; Seals PTFE/Graphoil/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Nominal diameter 125mm; Pressure range 0...16bar; Flange PN16; Length 325mm; Actuator PAS1605

Intrastat No.: 84818081
Country of origin: Italy Made in Europe
Weight: 80.0 Kg
Short Itemnumber: BA051125S0A
https://www.stasto.hu/web/image/product.template/137891/image_1920?unique=7d94123

flanged ball valve with pneumatic actuator series BA051; Fire-Safe/Antistatik according to ATEX/TA−Luft; length according to EN558−1R27; body, ball AISI 316; seals PTFE/Graphoil/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; nominal diameter 125mm; pressure range 0...16bar; flange PN16; length 325mm; actuator PAS1605

5.234,60 € 5234.6 EUR 5.234,60 €

ár kérésre

excl. tax
  • Valve interface Namur
  • DN
  • Length
  • Flange
  • Connector size
  • Design
  • Voltage
  • Pressure range
  • Coil
  • Actuator

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...16 bar
DN 125 mm
Flange PN16
Length 325 mm
All specifications (5)
Documents
Data sheets, drawings and CAD files
Pressure range 0...16 bar
DN 125 mm
Flange PN16
Length 325 mm
Design ATEX

BA051-125-S0-A

Documents

1 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1
Danish / Dansk
ZIP

Data Sheets

1
German / Deutsch
ZIP

Data Sheets

1
Greek / Ελληνικά
ZIP

Data Sheets

1
English
ZIP

Data Sheets

1
Spanish / Español
ZIP

Data Sheets

1
Finnish / Suomi
ZIP

Data Sheets

1
French / Français
ZIP

Data Sheets

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1
Hungarian / Magyar
ZIP

Data Sheets

1
Italian / Italiano
ZIP

Data Sheets

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1
Dutch / Nederlands
ZIP

Data Sheets

1
Polish / Język polski
ZIP

Data Sheets

1
Romanian / română
ZIP

Data Sheets

1
Slovenian / slovenščina
ZIP

Data Sheets

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1
Swedish / Svenska
ZIP

Data Sheets

1
Flanged ball valve 760000-125
760000-125 x 1.0 Pcs
Flanged ball valve 760000-125
Flanged ball valve Series 760000; ATEX II 2 G/D; Fire-safe; TA-Luft; Length According to EN558−1R27; Full bore; Body, Ball 1.4408; Seals PTFE/Graphoil/FKM; Medium temperature -20...+160°C; With locking device; Nominal diameter 125mm; Pressure range 0-16bar; Flange PN16; Length 325mm
Pneumatic actuator PAS1605
PAS1605 x 1.0 Pcs
Pneumatic actuator PAS1605
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 160mm; Flange ISO5211 F10/F12; Female square 27mm; Torque at 5,5bar 202Nm
RI3997 x 1.0 Pcs
RI3997
Mounting bracket; F07-F10; Bolt 27-18
Accessory Products
EB0X01
EB0X01
Material of case
Plastic
Brand
STASTO
EB0X02
EB0X02
Material of case
Plastic
Brand
STASTO
EB0X04YA
EB0X04YA
Material of case
Aluminum
Brand
STASTO
EB0X04YA-ULCSA-01
EB0X04YA-ULCSA-01
Material of case
Aluminum
Brand
STASTO
EB0X05
EB0X05
Design
ATEX
Material of case
Plastic
Brand
STASTO
RI4611
RI4611
Diameter
160 mm
RI4625
RI4625
Diameter
160 mm
RI4653
RI4653
Diameter
160 mm
