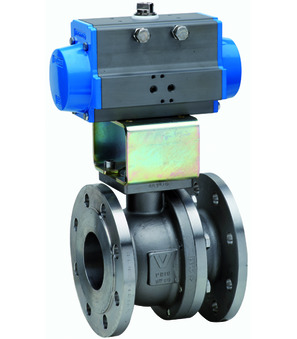

Flanged ball valve with pneumatic actuator BA051-40-S0-A3C

Flanged ball valve with pneumatic actuator BA051-40-S0-A3C

Flanged ball valve with pneumatic actuator Series BA051; Fire-Safe/Antistatik According to ATEX/TA−Luft; Length According to EN558−1R27; Body, Ball 1.4408; Seals PTFE/Graphoil/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness; Nominal diameter 40mm; Pressure range 0...40bar; Flange PN40; Length 140mm; Actuator PAS0855

Intrastat No.: 84818081
Country of origin: Italy
Weight: 15.43 Kg
Short Itemnumber: BA05140S0A3C
https://www.stasto.hu/web/image/product.template/182737/image_1920?unique=7d94123

flanged ball valve with pneumatic actuator series BA051; Fire-Safe/Antistatik according to ATEX/TA−Luft; length according to EN558−1R27; body, ball AISI 316; seals PTFE/Graphoil/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; incl. inspection certificate EN-10204-3.1; for material, pressure, function and tightness; nominal diameter 40mm; pressure range 0...40bar; flange PN40; length 140mm; actuator PAS0855

1.182,70 € 1182.7 EUR 1.182,70 €

ár kérésre

excl. tax
  • Valve interface Namur
  • DN
  • Length
  • Flange
  • Connector size
  • Design
  • Voltage
  • Pressure range
  • Coil
  • Actuator

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...40 bar
DN 40 mm
Flange PN40
Length 140 mm
All specifications (5)
Documents
Data sheets, drawings and CAD files
Pressure range 0...40 bar
DN 40 mm
Flange PN40
Length 140 mm
Design ATEX

BA051-40-S0-A3C

Documents

1 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1
Danish / Dansk
ZIP

Data Sheets

1
German / Deutsch
ZIP

Data Sheets

1
Greek / Ελληνικά
ZIP

Data Sheets

1
English
ZIP

Data Sheets

1
Spanish / Español
ZIP

Data Sheets

1
Finnish / Suomi
ZIP

Data Sheets

1
French / Français
ZIP

Data Sheets

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1
Hungarian / Magyar
ZIP

Data Sheets

1
Italian / Italiano
ZIP

Data Sheets

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1
Dutch / Nederlands
ZIP

Data Sheets

1
Polish / Język polski
ZIP

Data Sheets

1
Romanian / română
ZIP

Data Sheets

1
Slovenian / slovenščina
ZIP

Data Sheets

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1
Swedish / Svenska
ZIP

Data Sheets

1
Flanged ball valve BA051-40-LLD-A3C
BA051-40-LLD-A3C x 1.0 Pcs
Flanged ball valve BA051-40-LLD-A3C
Flanged ball valve Series BA051-A3C; ATEX II 2 G/D; Fire-safe; TA-Luft; Length According to EN558−1R27; Full bore; Body, Ball 1.4408; Seals PTFE/Graphoil/FKM; Medium temperature -20...+160°C; With locking device; Nominal diameter 40mm; Pressure range 0...40bar; Flange PN40; Length 140mm; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness
Pneumatic actuator PAS0855
PAS0855 x 1.0 Pcs
Pneumatic actuator PAS0855
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 28,7Nm
RI3526 x 1.0 Pcs
RI3526
Mounting kit for PKH F07/F05-F05 stud 17-10
