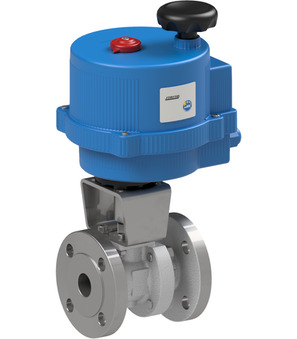

Flanged ball valve with electrical actuator BA051-65-PH

Name: Flanged ball valve with electrical actuator BA051-65-PH
Brand: STASTO
SKU: BA051-65-PH
Price: 2349.0 EUR
Availability: InStock

flanged ball valve with electrical actuator series BA051; length according to EN558−1R27; body, ball AISI 316; seals PTFE/Graphoil/FKM; medium temperature -20...+160°C; DN 65mm; pressure range 0-16bar; flange PN16; length 170mm; operating time 27s; voltage 100-240VAC; NC-accumulator for safety position

Intrastat No.: 84818081
Country of origin: Italy
Weight: 22.26 Kg
Short Itemnumber: BA05165PH

2.349,00 € 2349.0 EUR 2.349,00 €

DN
- 65 mm
Length
- 170 mm
Flange
- PN16
Voltage
- 100-240VAC
Pressure range
- 0...16 bar
Actuator
- VB110H
Operating time
- 27 s

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

dimension
DN	65 mm
Length	170 mm
Flange	PN16
Electrical key figures
Voltage	100-240VAC
pressure
Pressure range	0...16 bar
characteristics
Actuator	VB110H
Operating time	27 s

760000-65 x 1.0

Flanged ball valve 760000-65

Flanged ball valve Series 760000; ATEX II 2 G/D; Fire-safe; TA-Luft; Length According to EN558−1R27; Full bore; Body, Ball 1.4408; Seals PTFE/Graphoil/FKM; Medium temperature -20...+160°C; With locking device; Nominal diameter 65mm; Pressure range 0-16bar; Flange PN16; Length 170mm

Add to Cart

VB110-H-AKKU x 1.0

Electrical actuator VB110-H-AKKU

Electrical actuator Series VB-AKKU; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Protection class IP67; Including Accumulator for safety position; Torque 110Nm; Operating time 27s; Flange ISO5211 F07/F10-Stern 17 mm; Voltage 100…240VAC; Function NC

Add to Cart

RI3522 x 1.0
