BA075-40-S0-01

Name: BA075-40-S0-01
Brand: STASTO
SKU: BA075-40-S0-01
Price: 1032.0 EUR
Availability: InStock

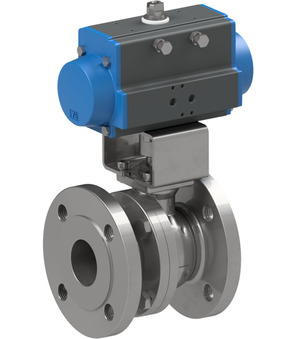

Flanged ball valve with pneumatic actuator Series BA075;; Fire-Safe/Antistatik According to ATEX/TA-Luft; Length According to EN558−1 R1; Body 1.0619; Ball 1.4301; Stem seal 2-fold PTFE/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+160°C; Nominal diameter 40mm; Pressure range 0-40bar; Flange PN40; Length 200mm; Actuator PAS0855

Intrastat No.: 84818081
Country of origin: Italy
Weight: 5.52 Kg
Short Itemnumber: BA07540S001

flanged ball valve with pneumatic actuator series BA075;; Fire-Safe/Antistatik according to ATEX/TA-Luft; length according to EN558−1 R1; body A216-WCB; ball AISI 304; stem seal 2-fold PTFE/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+160°C; nominal diameter 40mm; pressure range 0-40bar; flange PN40; length 200mm; actuator PAS0855

1.032,00 € 1032.0 EUR 1.032,00 €

excl. tax

DN
- 40 mm
Length
- 160 mm
Flange
- PN40
Design
- ATEX
Pressure range
- 0...40 bar
Actuator
- PAS0855
Brand
- STASTO

This combination does not exist.

Availability:

See availability

Add to cart

Technical specifications

Pressure range	0...40 bar
DN	40 mm
Flange	PN40
Length	160 mm

All specifications (6)

Specifications
Spare Parts

Pressure range	0...40 bar
DN	40 mm
Flange	PN40
Length	160 mm
Design	ATEX
Brand	STASTO

760802-40 x 1.0 Pcs

760802-40

Flanged ball valve; Fire-Safe/Antistatik According to ATEX/TA-Luft; Length According to EN558−1 R1; Body 1.0619; Ball 1.4301; Stem seal 2-fold PTFE/FKM; Medium temperature -10...+160°C; Nominal diameter 40mm; Pressure range 0-40bar; Flange PN40; Length 200mm

RI3526 x 1.0 Pcs

RI3526

Mounting kit for PKH F07/F05-F05 stud 17-10

PAS0855 x 1.0 Pcs

Pneumatic actuator PAS0855

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 28,7Nm
