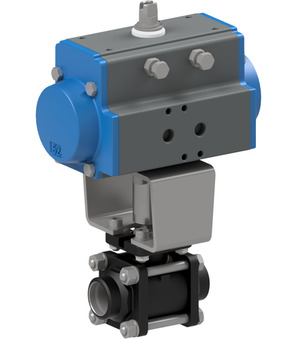

Ball valve with pneumatic actuator BA078-15-D0B-A-01

Ball valve with pneumatic actuator BA078-15-D0B-A-01

ball valve with pneumatic actuator; ATEX II 2 G/D; butt weld ends; body steel; ball AISI 304; seals PTFE-reinforced/FKM; double acting actuator ATEX II 2 G/D c T6; control pressure 5,5...8bar; medium temperature -10...+198°C; nominal diameter 15mm; pressure range steam 0...15bar; length 65mm; actuator PAD052; incl. 2 pieces PI16-08-18-N-0-360

Intrastat No.: 84818081
Country of origin: Italy
Weight: 1.733 Kg
Short Itemnumber: BA07815D0BA01
https://www.stasto.hu/web/image/product.template/238262/image_1920?unique=8f41e78

ball valve with pneumatic actuator; ATEX II 2 G/D; butt weld ends; body steel; ball AISI 304; seals PTFE-reinforced/FKM; double acting actuator ATEX II 2 G/D c T6; control pressure 5,5...8bar; medium temperature -10...+198°C; nominal diameter 15mm; pressure range steam 0...15bar; length 65mm; actuator PAD052; incl. 2 pieces PI16-08-18-N-0-360

379,80 € 379.8 EUR 379,80 €

ár kérésre

excl. tax
  • DN
  • Length
  • Design
  • Pressure range
  • Pressure range Steam
  • Actuator
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...64 bar
DN 15 mm
Pressure range Steam 0...15 bar
Length 65 mm
All specifications (6)
Documents
Data sheets, drawings and CAD files
Pressure range 0...64 bar
DN 15 mm
Pressure range Steam 0...15 bar
Length 65 mm
Design ATEX
Brand STASTO

BA078-15-D0B-A-01

Documents

1 Documents 7 Languages

Czech / Čeština
ZIP

Data Sheets

1
German / Deutsch
ZIP

Data Sheets

1
English
ZIP

Data Sheets

1
Hungarian / Magyar
ZIP

Data Sheets

1
Polish / Język polski
ZIP

Data Sheets

1
Slovenian / slovenščina
ZIP

Data Sheets

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1
No spare parts are available for this product.
