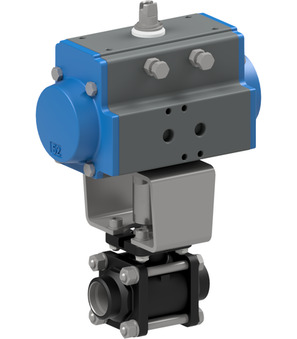

Ball valve with pneumatic actuator BA078-40-D0-A-01

Ball valve with pneumatic actuator BA078-40-D0-A-01

Ball valve with pneumatic actuator Series BA078-D0B/D01-A; ATEX II 2 G/D; Butt weld ends; Body Steel; Ball 1.4301; Seals PTFE-reinforced/FKM; Double acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -10...+198°C; Nominal diameter 40mm; Pressure range Steam 0…15bar; Length 116mm; Actuator PAD075

Intrastat No.: 84818081
Country of origin: Italy
Weight: 5.84 Kg
Short Itemnumber: BA07840D0A01
https://www.stasto.hu/web/image/product.template/138690/image_1920?unique=909baaf

ball valve with pneumatic actuator series BA078-D0B/D01-A; ATEX II 2 G/D; butt weld ends; body steel; ball AISI 304; seals PTFE-reinforced/FKM; double acting actuator ATEX II 2 G/D c T6; control pressure 5,5...8bar; medium temperature -10...+198°C; nominal diameter 40mm; pressure range steam 0…15bar; length 116mm; actuator PAD075

700,30 € 700.3 EUR 700,30 €

ár kérésre

excl. tax
  • DN
  • Length
  • Design
  • Pressure range
  • Pressure range Steam
  • Actuator

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...25 bar
DN 40 mm
Pressure range Steam 0...15 bar
Length 116 mm
All specifications (5)
Documents
Data sheets, drawings and CAD files
Pressure range 0...25 bar
DN 40 mm
Pressure range Steam 0...15 bar
Length 116 mm
Design ATEX

BA078-40-D0-A-01

Documents

1 Documents 7 Languages

Czech / Čeština
ZIP

Data Sheets

1
German / Deutsch
ZIP

Data Sheets

1
English
ZIP

Data Sheets

1
Hungarian / Magyar
ZIP

Data Sheets

1
Polish / Język polski
ZIP

Data Sheets

1
Slovenian / slovenščina
ZIP

Data Sheets

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1
Ball valve made of steel 40-116
BA078-40-L-A x 1.0 Pcs
Ball valve made of steel 40-116
Ball valve made of steel Series BA078-L-A; For steam; ATEX II 2 D/G; Full bore; Three-parts type; Butt weld ends; Body Steel; Ball 1.4301; Seals PTFE-reinforced/FKM; Pressure range Steam 0...15bar; Medium temperature -10...+198°C; Nominal diameter 40mm; Length 116mm
Pneumatic actuator PAD075
PAD075 x 1.0 Pcs
Pneumatic actuator PAD075
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 75mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 66Nm
RI3031 x 1.0 Pcs
RI3031
Mounting bracket; F07/F05-F05; Bolt 14-10
