Flanged ball valve with pneumatic actuator BA079-20-S0

Price.

571,10 €
Flanged ball valve with pneumatic actuator Series BA079-S Store
  1. Products
  2. Armatures
  3. Ball valves - automatically operated
  4. Other materiales - A03
  5. Flanged ball valve with pneumatic actuator Series BA079-S
  6. BA079-20-S0

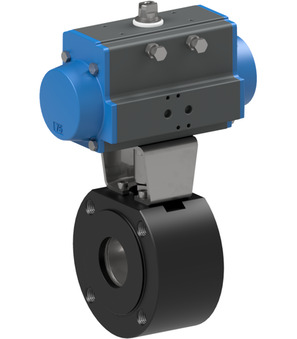

Flanged ball valve with pneumatic actuator BA079-20-S0
Flanged ball valve with pneumatic actuator BA052-150-S0
Flanged ball valve with pneumatic actuator BA052-150-S0
9.419,70 €
9.419,70 €
Flanged ball valve with pneumatic actuator BA079-32-S0
Flanged ball valve with pneumatic actuator BA079-32-S0
658,80 €
658,80 €

Flanged ball valve with pneumatic actuator BA079-20-S0

Flanged ball valve with pneumatic actuator Series BA079-S; For steam; Flange PN16; Body Steel; Ball 1.4301; Seals PTFE-Graphite/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+198°C; Pressure range Steam 0...15bar; Nominal diameter 20mm; Length 40mm; Actuator PAS0855

Intrastat No.: 84818081
Country of origin: Italy
Weight: 7.04 Kg
Short Itemnumber:BA07920S0
https://www.stasto.hu/web/image/product.template/107697/image_1920?unique=f863850

flanged ball valve with pneumatic actuator series BA079-S; for steam; flange PN16; body steel; ball AISI 304; seals PTFE-graphite/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+198°C; pressure range steam 0...15bar; nominal diameter 20mm; length 40mm; actuator PAS0855

571,10 € 571.1 EUR 571,10 €

ár kérésre

  • DN
  • Length
  • Actuator

This combination does not exist.

Availability:
Contact Us
dimension
DN 20 mm
Length 40 mm
characteristics
Actuator PAS0855
Flanged ball valve BA079-20-L-A
BA079-20-L-A x 1.0
Flanged ball valve BA079-20-L-A
Flanged ball valve Series BA079-L; For steam; ATEX II 2 G/D; Fire-safe; TA-Luft; Flange PN16, Full bore; Body Steel; Ball 1.4301; Seals PTFE-Graphite/FKM; Pressure range Steam 0...15bar; Medium temperature -20...+198°C; Nominal diameter 20mm; Length 40mm
Add to Cart
Pneumatic actuator PAS0855
PAS0855 x 1.0
Pneumatic actuator PAS0855
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 28,7Nm
Add to Cart
