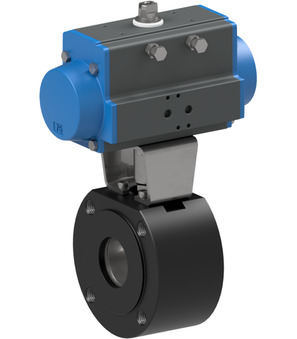

Flanged ball valve with pneumatic actuator BA079-32-D0

Flanged ball valve with pneumatic actuator BA079-32-D0

Flanged ball valve with pneumatic actuator Series BA079-D; For steam; Flange PN16; Body Steel; Ball 1.4301; Seals PTFE-Graphite/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+198°C; Pressure range Steam 0...15bar; Nominal diameter 32mm; Length 54mm; Actuator PAD063

Intrastat No.: 84818081
Country of origin: Italy Made in Europe
Weight: 5.31 Kg
Short Itemnumber: BA07932D0
https://www.stasto.hu/web/image/product.template/110850/image_1920?unique=4df2fcd

flanged ball valve with pneumatic actuator series BA079-D; for steam; flange PN16; body steel; ball AISI 304; seals PTFE-graphite/FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+198°C; pressure range steam 0...15bar; nominal diameter 32mm; length 54mm; actuator PAD063

584,50 € 584.5 EUR 584,50 €

ár kérésre

excl. tax
  • DN
  • Length
  • Actuator

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range Steam 0...15bar
DN 32 mm
Length 54 mm
Documents
Data sheets, drawings and CAD files
Pressure range Steam 0...15bar
DN 32 mm
Length 54 mm

BA079-32-D0

Documents

1 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1
Danish / Dansk
ZIP

Data Sheets

1
German / Deutsch
ZIP

Data Sheets

1
Greek / Ελληνικά
ZIP

Data Sheets

1
English
ZIP

Data Sheets

1
Spanish / Español
ZIP

Data Sheets

1
Finnish / Suomi
ZIP

Data Sheets

1
French / Français
ZIP

Data Sheets

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1
Hungarian / Magyar
ZIP

Data Sheets

1
Italian / Italiano
ZIP

Data Sheets

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1
Dutch / Nederlands
ZIP

Data Sheets

1
Polish / Język polski
ZIP

Data Sheets

1
Romanian / română
ZIP

Data Sheets

1
Slovenian / slovenščina
ZIP

Data Sheets

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1
Swedish / Svenska
ZIP

Data Sheets

1
Flanged ball valve BA079-32-L-A
BA079-32-L-A x 1.0 Pcs
Flanged ball valve BA079-32-L-A
Flanged ball valve Series BA079-L; For steam; ATEX II 2 G/D; Fire-safe; TA-Luft; Flange PN16, Full bore; Body Steel; Ball 1.4301; Seals PTFE-Graphite/FKM; Pressure range Steam 0...15bar; Medium temperature -20...+198°C; Nominal diameter 32mm; Length 54mm
Pneumatic actuator PAD063
PAD063 x 1.0 Pcs
Pneumatic actuator PAD063
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 36Nm
RI3001 x 1.0 Pcs
RI3001
Mounting bracket; F05/F03-F04; 11-8
