BA080-212-0H-01

BA080-212-0H-01

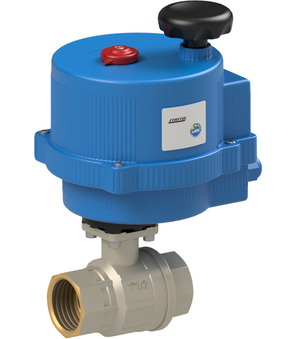

Ball valve with electrical actuator; Female thread; Body, Ball Brass; Seals PTFE/FKM/EPDM; Medium temperature 0...+100°C; RP 21/2"; DN 65mm; Pressure range 0-25bar; Length 165mm; Operating time 27s; Voltage 100-240VAC; VB110-H

Intrastat No.: 84818081
Country of origin: Italy
Weight: 8.91 Kg
Short Itemnumber: BA0802120H01
https://www.stasto.hu/web/image/product.template/159197/image_1920?unique=bbf6c05

ball valve with electrical actuator; female thread; body, ball brass; seals PTFE/FKM/EPDM; medium temperature 0...+100°C; RP 21/2"; DN 65mm; pressure range 0-25bar; length 165mm; operating time 27s; voltage 100-240VAC; VB110-H

1.322,20 € 1322.2 EUR 1.322,20 €

ár kérésre

excl. tax
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0-25bar
Brand STASTO
Pressure range 0-25bar
Brand STASTO
Ball valve made of brass 2500-21/2"
2500-21/2" x 1.0 Pcs
Ball valve made of brass 2500-21/2"
Ball valve made of brass Series 2500; Bare shaft; Full bore; Female thread; Seal PTFE/FKM/EPDM; Medium temperature -20...+160°C; RP 21/2"; Nominal diameter 65mm; Pressure range 0…25bar; Length 165mm; Flange ISO5211 F07; Square 14mm
Electrical actuator VB110-H
VB110-H x 1.0 Pcs
Electrical actuator VB110-H
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 110Nm; Operating time 27s; Flange ISO5211 F07/F10-Stern 17 mm; Voltage 100-240VAC; Protection class IP67
