BA080-30-D0-2C

BA080-30-D0-2C

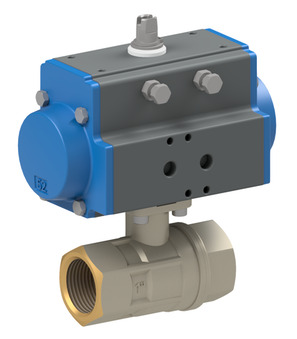

Ball valve with pneumatic actuator; Body, Ball Brass; Seals PTFE/FKM/EPDM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 3"; Nominal diameter 80mm; Pressure range 0-16bar; Length 188mm; Actuator PAD063; Incl. test report 2.2

Intrastat No.: 84818081
Country of origin: Italy
Weight: 7.96 Kg
Short Itemnumber: BA08030D02C
https://www.stasto.hu/web/image/product.template/218247/image_1920?unique=87fb56f

ball valve with pneumatic actuator; body, ball brass; seals PTFE/FKM/EPDM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; RP 3"; nominal diameter 80mm; pressure range 0-16bar; length 188mm; actuator PAD063; incl. test report 2.2

1.035,10 € 1035.1 EUR 1.035,10 €

ár kérésre

excl. tax
  • Female thread
  • DN
  • Length
  • Pressure range
  • Actuator
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...16 bar
Female thread RP 3"
DN 80 mm
Length 188 mm
All specifications (5)
Pressure range 0...16 bar
Female thread RP 3"
DN 80 mm
Length 188 mm
Brand STASTO
Ball valve made of brass 2500-3"
2500-3" x 1.0 Pcs
Ball valve made of brass 2500-3"
Ball valve made of brass Series 2500; Bare shaft; Full bore; Female thread; Seal PTFE/FKM/EPDM; Medium temperature -20...+160°C; RP 3"; Nominal diameter 80mm; Pressure range 0…16bar; Length 188mm; Flange ISO5211 F07; Square 14mm
Pneumatic actuator PAD063
PAD063 x 1.0 Pcs
Pneumatic actuator PAD063
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 36Nm
