BA081-10-QH-01

BA081-10-QH-01

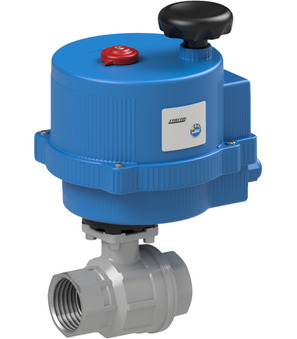

ball valve with electrical actuator; female thread; body, ball AISI 316; seals PTFE/FKM; medium temperature 0...+100°C; RP 1"; DN 25mm; pressure range 0...40bar; length 90mm; operating time 9s; voltage 100-240VAC; body actuator aluminum protection class IP68; incl. accumulator for safety position NO

Intrastat No.: 84818081
Country of origin: Italy
Weight: 2.719 Kg
Short Itemnumber: BA08110QH01
https://www.stasto.hu/web/image/product.template/228664/image_1920?unique=9fa7d43

ball valve with electrical actuator; female thread; body, ball AISI 316; seals PTFE/FKM; medium temperature 0...+100°C; RP 1"; DN 25mm; pressure range 0...40bar; length 90mm; operating time 9s; voltage 100-240VAC; body actuator aluminum protection class IP68; incl. accumulator for safety position NO

920,70 € 920.7 EUR 920,70 €

ár kérésre

excl. tax
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...40bar
Brand STASTO
Pressure range 0...40bar
Brand STASTO
Ball valve made of stainless steel BA081-10-B
BA081-10-B x 1.0 Pcs
Ball valve made of stainless steel BA081-10-B
Ball valve made of stainless steel Series BA081; Full bore; Two-parts type; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; Connection G 1"; Nominal diameter 25mm; Pressure range 0...64bar; Length 90mm
Electrical actuator VB015M-QF9-Q11
VB015M-QF9-Q11 x 1.0 Pcs
Electrical actuator VB015M-QF9-Q11
electrical actuator series VB; suitable for valves with 90° operation; for a maximum of 100 operations a day; limit switch-off is wired; 2 potential-free contacts for end position feedback; incl. manual emergency override; incl. accumulator for safety position NO; torque 15Nm; operating time 9s; flange ISO5211 F03/F05-Stern 11 mm; voltage 100-240VAC; protection class IP68; body aluminum
