Ball valve with pneumatic actuator Series BA081-D0-A Store

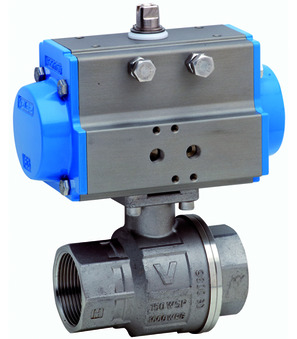

Ball valve with pneumatic actuator BA081-112-D0-A

Name: Ball valve with pneumatic actuator BA081-112-D0-A
Brand: STASTO
SKU: BA081-112-D0-A
Price: 433.45 EUR
Availability: InStock

Ball valve with pneumatic actuator Series BA081-D0-A; ATEX II 2 G/D; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Double acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 11/2"; Nominal diameter 40mm; Pressure range 0…40bar; Length 112mm; Actuator PAD052

Intrastat No.: 84818081
Country of origin: Italy
Weight: 2.851 Kg
Short Itemnumber:BA081112D0A

ball valve with pneumatic actuator series BA081-D0-A; ATEX II 2 G/D; female thread; body, ball AISI 316; seals PTFE/FKM; double acting actuator ATEX II 2 G/D c T6; control pressure 5,5...8bar; medium temperature -20...+160°C; RP 11/2"; nominal diameter 40mm; pressure range 0…40bar; length 112mm; actuator PAD052

433,45 € 433.45 EUR 433,45 €

Female thread
- RP 1 1/2"
DN
- 40 mm
Length
- 112 mm
Design
- ATEX
Pressure range
- 0...40 bar
Actuator
- PAD052

This combination does not exist.

Availability:

In den Warenkorb

Specifications
Spare Parts

dimension
Female thread	RP 1 1/2"
DN	40 mm
Length	112 mm
design
Design	ATEX
pressure
Pressure range	0...40 bar
characteristics
Actuator	PAD052

BA081-112-B x 1.0

Ball valve made of stainless steel BA081-112-B

Ball valve made of stainless steel Series BA081; Full bore; Two-parts type; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; Connection G 11/2"; Nominal diameter 40mm; Pressure range 0...64bar; Length 112mm

Add to Cart

PAD052 x 1.0

Pneumatic actuator PAD052

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 52mm; Flange ISO5211 F03/F05; Female square 11mm; Torque at 5,5bar 20Nm
