BA091-80-D0-02

Price.

1.361,40 €
Ball valve with pneumatic actuator Series BA091-D0B/D01 Store
  1. Products
  2. Armatures
  3. Ball valves - automatically operated
  4. Other materiales - A03
  5. Ball valve with pneumatic actuator Series BA091-D0B/D01
  6. BA091-80-D0-02
BA091-80-D0-02
Ball valve with pneumatic actuator BA091-80-D0-01
Ball valve with pneumatic actuator BA091-80-D0-01
1.477,90 €
1.477,90 €
Ball valve with pneumatic actuator BA091-100-D0-01
Ball valve with pneumatic actuator BA091-100-D0-01
2.289,90 €
2.289,90 €

BA091-80-D0-02

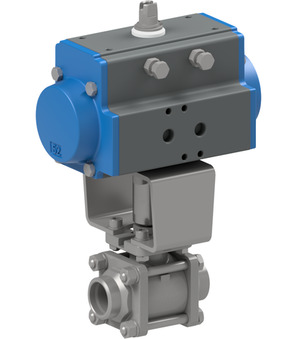

Ball valve with pneumatic actuator Series BA091-D0B/D01; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Double acting actuator, Oversized; Control pressure 5,5...8bar; Medium temperature -20...+198°C; Nominal diameter 80mm; Pressure range Steam 0...15bar; Length 180mm; Actuator PAD115

Intrastat No.: 84818081
Country of origin: Italy
Weight: 17.81 Kg
Short Itemnumber:BA09180D002
https://www.stasto.hu/web/image/product.template/243469/image_1920?unique=6b39bd5

ball valve with pneumatic actuator series BA091-D0B/D01; butt weld ends; body, ball AISI 316; seals PTFE-reinforced/FKM; double acting actuator, oversized; control pressure 5,5...8bar; medium temperature -20...+198°C; nominal diameter 80mm; pressure range steam 0...15bar; length 180mm; actuator PAD100

1.361,40 € 1361.4 EUR 1.361,40 €

ár kérésre

  • Diameter
  • Male thread
  • Valve interface Namur
  • DN
  • Length
  • Connector size
  • Design
  • Voltage
  • Pressure range
  • Pressure range Steam
  • Coil
  • Actuator
  • Actuator 2

This combination does not exist.

Availability:
Contact Us
dimension
Valve interface Namur 1/4"
DN 80 mm
Length 180 mm
pressure
Pressure range 0...16 bar
Pressure range Steam 0...15 bar
characteristics
Actuator PAD115

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Data Sheets
1
Data sheet_Ball valve with pneumatic actuator Series BA091-D0B/D01_EN.pdf
Download

ZIP
Datové listy
1
Datový list_kulový kohout s otočným pneumatickým pohonem série BA091-D0B/D01_CS.pdf
Download

ZIP
Data Sheets
1
Datablad_Kugleventil med pneumatisk drejedrev Serie BA091-D0B/D01_DA_DK.pdf
Download

ZIP
Datenblätter
1
Datenblatt_Kugelhahn mit Druckluftdrehantrieb Serie BA091-D0B/D01_DE.pdf
Download

ZIP
Data Sheets
1
Δελτίο δεδομένων_Σφαιρική βάνα με πνευματικό περιστροφικό ενεργοποιητή Σειρά BA091-D0B/D01_EL_GR.pdf
Download

ZIP
Data Sheets
1
Ficha técnica_Válvula de bola con actuador neumático rotativo Serie BA091-D0B/D01_ES.pdf
Download

ZIP
Data Sheets
1
Tietolehti_Palloventtiili paineilmatoimisella kääntötoimilaitteella Sarja BA091-D0B/D01_FI.pdf
Download

ZIP
Data Sheets
1
Fiche technique_Vanne à boisseau sphérique avec actionneur pneumatique rotatif Série BA091-D0B/D01_FR.pdf
Download

ZIP
Data Sheets
1
Podatkovni list_Kuglasti ventil s pneumatskim rotacijskim pogonom Serija BA091-D0B/D01_HR.pdf
Download

ZIP
Adatlapok
1
Adatlap_pneumatikus forgatóhengerrel működtetett gömbcsap sorozat BA091-D0B/D01_HU.pdf
Download

ZIP
Data Sheets
1
Scheda tecnica_Valvola a sfera con attuatore pneumatico rotativo Serie BA091-D0B/D01_IT.pdf
Download

ZIP
Data Sheets
1
Datablad_Kuleventil med pneumatisk roterende aktuator Serie BA091-D0B/D01_NB_NO.pdf
Download

ZIP
Data Sheets
1
Datasheet_Kogelkraan met pneumatische draaiaandrijving Serie BA091-D0B/D01_NL.pdf
Download

ZIP
Karty katalogowe
1
Arkusz danych_zawór kulowy z napędem pneumatycznym Seria BA091-D0B/D01_PL.pdf
Download

ZIP
Data Sheets
1
Fișă de date_Robinet cu bilă cu actuator rotativ pneumatic serie BA091-D0B/D01_RO.pdf
Download

ZIP
Podatkovni listi
1
Podatkovni list_Krogelna pipa s pnevmatskim rotacijskim pogonom serija BA091-D0B/D01_SL.pdf
Download

ZIP
Data Sheets
1
Tehnički list_kuglasti ventil sa pneumatskim aktuatorom serije BA091-D0B/D01_SRLATIN.pdf
Download

ZIP
Data Sheets
1
Datablad_Kulventil med pneumatiskt vriddon Serie BA091-D0B/D01_SV.pdf
Download
No spare parts are available for this product.
