BA092-50-D0-A

Name: BA092-50-D0-A
Brand: STASTO
SKU: BA092-50-D0-A
Price: 959.5 EUR
Availability: InStock

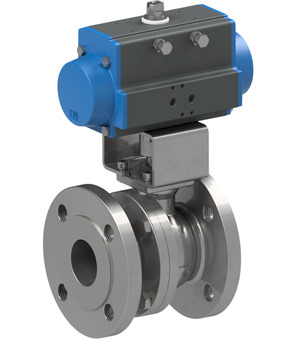

Flanged ball valve with pneumatic actuator; Fire-Safe/Antistatik According to ATEX/TA−Luft; Length According to EN558−1 R27; Body Zinc plated steel; Ball 1.4301; Seals PTFE/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+160°C; Nominal diameter 50mm; Pressure range 0...20bar; Flange ANSI150; Length 178mm; Actuator PAD075

Intrastat No.: 84818081
Country of origin: Italy
Weight: 14.37 Kg
Short Itemnumber: BA09250D0A

flanged ball valve with pneumatic actuator; Fire-Safe/Antistatik according to ATEX/TA−Luft; length according to EN558−1 R27; body zinc plated steel; ball AISI 304; seals PTFE/FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+160°C; nominal diameter 50mm; pressure range 0...20bar; flange ANSI150; length 178mm; actuator PAD075

959,50 € 959.5 EUR 959,50 €

Design
- ATEX

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

Design

ATEX

BA092-50-L-A x 1.0

Flanged ball valve BA092-50-L-A

Flanged ball valve Series BA092; ATEX II 2 G/D; Fire-safe; TA-Luft; Length According to ANSI B16.10; Body Zinc plated steel; Ball 1.4301; Seals PTFE/FKM; Medium temperature -10...+160°C; Flange ANSI150; Pressure range 0...20Bar; Nominal diameter 50mm; Length 178mm

Add to Cart

PAD075 x 1.0

Pneumatic actuator PAD075

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 75mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 66Nm

Add to Cart

RI3522 x 1.0
