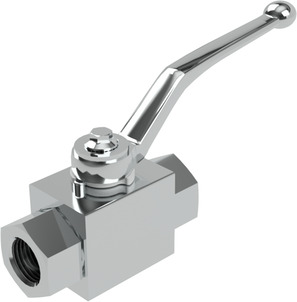

BA102-12N-L-3C
High pressure ball valve Series BA102-N-3C; Female thread; Body, Ball AISI 316Ti/AISI 316L; Seals POM/FKM; Medium temperature -20...+100°C; For liquids; 1/2"NPT; Nominal diameter 13mm; Pressure range 0...500bar; Length 83mm; Incl. Inspection certificate EN-10204-3.1 For pressure, function and tightness; Incl. Inspection certificate EN-10204-3.1 For Material of case
Intrastat No.: 84818081
Country of origin: Germany
Weight: 0.75 Kg
Short Itemnumber: BA10212NL3C
Country of origin: Germany
Weight: 0.75 Kg
Short Itemnumber: BA10212NL3C
High pressure ball valve Series BA102-N-3C; Female thread; Body, Ball AISI 316Ti/AISI 316L; Seals POM/FKM; Medium temperature -20...+100°C; For liquids; 1/2"NPT; Nominal diameter 13mm; Pressure range 0...500bar; Length 83mm; Incl. Inspection certificate EN-10204-3.1 For pressure, function and tightness; Incl. Inspection certificate EN-10204-3.1 For Material of case
| dimension | |
|---|---|
| Female thread | G 1/2" |
| DN | 13 mm |
| Length | 83 mm |
| pressure | |
| Pressure range | 0...500 bar |
No spare parts are available for this product.
