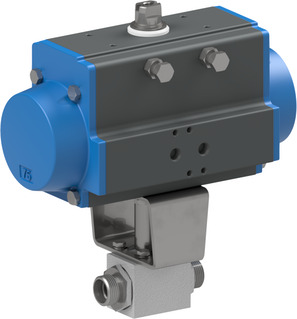

BA102-25S-D0

BA102-25S-D0

Ball valve with pneumatic actuator; Male thread According to ISO 8434-1 (DIN 2353); Body, Ball 1.4571/1.4404; Seals POM/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+100°C; For liquids; Connection 25S/M36x2; Nominal diameter 20mm; Pressure range 0...350bar; Length 109mm; Actuator PAD085

Intrastat No.: 84818081
Country of origin: Germany
Weight: 5.82 Kg
Short Itemnumber: BA10225SD0
https://www.stasto.hu/web/image/product.template/157942/image_1920?unique=3970b0b

ball valve with pneumatic actuator; male thread according to ISO 8434-1 (DIN 2353); body, ball AISI 316Ti/AISI 316L; seals POM/FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+100°C; for liquids; connection 25S/M36x2; nominal diameter 20mm; pressure range 0...350bar; length 109mm; actuator PAD085

752,20 € 752.2 EUR 752,20 €

ár kérésre

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications
    BA102-25S-B x 1.0
    High pressure ball valve BA102-25S-B
    High pressure ball valve Series BA102; Male thread according to ISO 8434-1 (DIN 2353); Drilled for mounting an actuator; Body, Ball 1.4571/1.4404; Seals POM/FKM; For liquids; Medium temperature -20...+100°C; Square 14mm; Connection 25S/M36X2; Nominal diameter 20mm; Pressure range 0…350bar; Length 109mm; Flange ISO5211 F05
    Add to Cart
    Pneumatic actuator PAD085
    PAD085 x 1.0
    Pneumatic actuator PAD085
    Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 96Nm
    Add to Cart
    A4/338/99 x 1.0
    A4/338/99
    Bolt; 1.4305; Diameter 25mm; Height of the bolt 54mm; Male square 14mm; Height of the male square 15mm; Female square 14mm; Height of the female square 15mm
