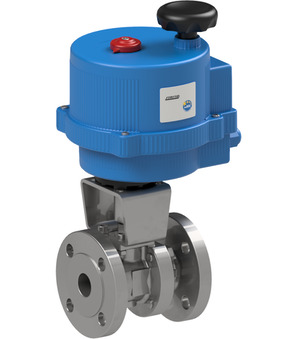

Flanged ball valve with electrical actuator BA110-65-CL-01

Name: Flanged ball valve with electrical actuator BA110-65-CL-01
Brand: STASTO
SKU: BA110-65-CL-01
Price: 2641.2 EUR
Availability: InStock

Flanged ball valve with electric actuator Series BA110-CL-01; Overall length according to EN558−1R27; Housing, Ball 1.4408; Ball seal PTFE-graphite reinforced; Spindle seal Graphoil/FKM/PTFE; Medium temperature -20...+160°C; DN 65mm; Print area 0-16bar; Flange PN16; Installation length 170mm; V-Ball 30-60°; Electric drive VB110-L-P0S; Operating time 27s; Tension 24VAC/DC; incl. Positioner 4-20mA/0-10V

Intrastat No.: 84818081
Country of origin: Italy
Short Itemnumber: BA11065CL01

2.641,20 € 2641.2 EUR 2.641,20 €

DN
- 65 mm
Length
- 170 mm
Flange
- PN16
Voltage
- 24VAC/DC
Pressure range
- 0...16 bar
Actuator
- VB110L
Operating time
- 27 s

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

dimension
DN	65 mm
Length	170 mm
Flange	PN16
Electrical key figures
Voltage	24VAC/DC
pressure
Pressure range	0...16 bar
characteristics
Actuator	VB110L
Operating time	27 s

BA110-65-LLD-A-01 x 1.0

Flanged ball valve BA110-65-LLD-A-01

Flanged ball valve Series BA110-LLD-A-01; ATEX II 2 G/D; Fire-Safe; TA-Luft; Lockable version; Overall length According to EN558−1R27; Full passage; Housing, Ball 1.4408; Ball seal PTFE-graphite reinforced; Spindle seal Graphoil/FKM/PTFE; Pressure range 0...16bar; Medium temperature -20...+160°C; Nominal diameter 65mm; Flange PN16; Installation length 170mm; V-Ball 30-60°

Add to Cart

VB110-L-P0S x 1.0

Electrical actuator VB110-L-P0S

Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Incl. Positioner 4-20mA/0-10V; Torque 110Nm; Operating time 27s; Flange ISO5211 F07/F10-Stern 17 mm; Voltage 24VAC/DC; Protection class IP67

Add to Cart

RI3522 x 1.0
