BA116-25-S2-A

Name: BA116-25-S2-A
Brand: STASTO
SKU: BA116-25-S2-A

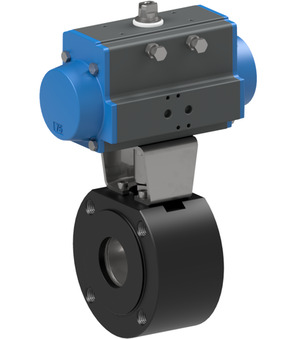

Flanged ball valve with pneumatic actuator; ATEX II 2 G/D c T3; Flange PN63; Body Steel; Ball 1.4301; Ball seal fibre-glass-reinforced PTFE; Stem seal graphite/PTFE/FKM; Single acting actuator ATEX II 2 G/D c T6; Control pressure 4...8bar; Medium temperature -20...+160°C; Pressure range 0...40bar; Nominal diameter 25mm; Length 65mm; Actuator PAS1003

Intrastat No.: 84818081
Country of origin: Italy
Weight: 14.16 Kg
Short Itemnumber: BA11625S2A

flanged ball valve with pneumatic actuator; ATEX II 2 G/D c T3; flange PN63; body steel; ball AISI 304; ball seal fibre-glass-reinforced PTFE; stem seal graphite/PTFE/FKM; single acting actuator ATEX II 2 G/D c T6; control pressure 4...8bar; medium temperature -20...+160°C; pressure range 0...40bar; nominal diameter 25mm; length 65mm; actuator PAS1003

On request

Design
- ATEX

This combination does not exist.

Availability:

Specifications
Spare Parts

Design

ATEX

BA116-25-L-A x 1.0

Flanged ball valve BA116-25-L-A

Flanged ball valve Series BA116-L-A; ATEX II 2 G/D; Flange PN63, Full bore; Body steel A350-LF2, Ball 1.4301; Seals Fibre-glass-reinforced PTFE/PTFE/Graphoil/FKM; Pressure range 0…63bar; Medium temperature -20...+160°C; Nominal diameter 25mm; Length 65mm

Add to Cart

PAS1003 x 1.0

Pneumatic actuator PAS1003

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 100mm; Flange ISO5211 F07/F10; Female square 17mm; Torque at 5,5bar 35,9Nm

Add to Cart

ATSV1004 x 1.0
