BA119-114-D0

BA119-114-D0

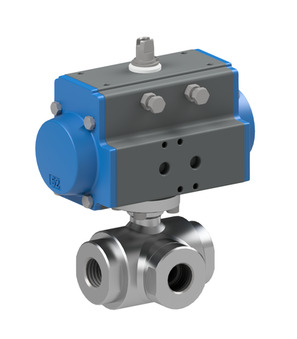

Ball valve with pneumatic actuator; 3-way-type; Sealing on four ports; Body, Ball 1.4404; Seals PTFE/EPDM-Perox; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -45...+140°C; RP 11/4"; Nominal diameter 32mm; Pressure range 0-40bar; Length 118mm; Actuator PAD075; Ball T

Intrastat No.: 84818081
Country of origin: Italy
Weight: 7.18 Kg
Short Itemnumber: BA119114D0
https://www.stasto.hu/web/image/product.template/151138/image_1920?unique=87f17bd

ball valve with pneumatic actuator; 3-way-type; sealing on four ports; body, ball AISI 316L; seals PTFE/EPDM-Perox; double acting actuator; control pressure 5,5...8bar; medium temperature -45...+140°C; RP 11/4"; nominal diameter 32mm; pressure range 0-40bar; length 118mm; actuator PAD075; ball T

1.118,90 € 1118.9 EUR 1.118,90 €

ár kérésre

excl. tax
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0-40bar
Brand STASTO
Pressure range 0-40bar
Brand STASTO
Ball valve made of stainless steel BA119-114-B
BA119-114-B x 1.0 Pcs
Ball valve made of stainless steel BA119-114-B
Ball valve made of stainless steel Series BA119, BA235; Bare shaft; 3-way-type; Female thread; Full bore; Body 1.4404 Polished; Ball 1.4404; Seals MPTFE/EPDM-Special; Sealing on three ports; Medium temperature -45...+150°C; G 11/4"; Nominal diameter 32mm; Pressure range 0…64bar; Length 118mm; Ball T; Flange ISO5211 F05; Square 14mm
Pneumatic actuator PAD075
PAD075 x 1.0 Pcs
Pneumatic actuator PAD075
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 75mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 66Nm
