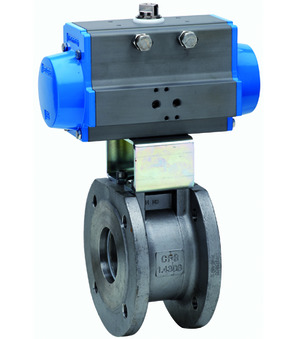

Flanged ball valve with pneumatic actuator BA160-40-D0-A

Name: Flanged ball valve with pneumatic actuator BA160-40-D0-A
Brand: STASTO
SKU: BA160-40-D0-A

Flanged ball valve with pneumatic actuator Series BA160-D0-A; ATEX II 2 G/D; Flange PN16; Body, Ball 1.4301; Seals PTFE; Double acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar; Also suitable for solvents; Nominal diameter 40mm; Length 63,5mm; Actuator PAD075

Intrastat No.: 84818081
Country of origin: Italy

Weight: 7.51 Kg
Short Itemnumber: BA16040D0A

flanged ball valve with pneumatic actuator series BA160-D0-A; ATEX II 2 G/D; flange PN16; body, ball AISI 304; seals PTFE; double acting actuator ATEX II 2 G/D c T6; control pressure 5,5...8bar; medium temperature -20...+160°C; pressure range 0...16bar; also suitable for solvents; nominal diameter 40mm; length 63,5mm; actuator PAD075
