BA178-200-S0-A

Name: BA178-200-S0-A
Brand: STASTO
SKU: BA178-200-S0-A

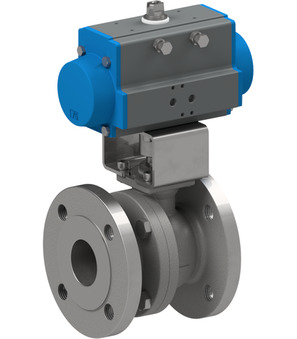

Flanged ball valve with pneumatic actuator; Fire-Safe/Antistatik According to ATEX/TA−Luft; Length According to ANSI B16.10; Body, Ball 1.4408; Seals PTFE/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Nominal diameter 200mm; Pressure range 0-20bar; Flange ANSI150; Length 457mm; Actuator PAS2305

Intrastat No.: 84818081
Country of origin: Italy
Weight: 204.0 Kg
Short Itemnumber: BA178200S0A

flanged ball valve with pneumatic actuator; Fire-Safe/Antistatik according to ATEX/TA−Luft; length according to ANSI B16.10; body, ball AISI 316; seals PTFE/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; nominal diameter 200mm; pressure range 0-20bar; flange ANSI150; length 457mm; actuator PAS2305

On request

Design
- ATEX

This combination does not exist.

Availability:

Specifications
Spare Parts

Design

ATEX

BA178-200-L-A x 1.0

Flanged ball valve BA178-200-L-A

Flanged ball valve Series BA178; ATEX II 2 G/D; Fire-safe; TA-Luft; Length According to ANSI B16.10; Flange ANSI150; Full bore; Body, Ball 1.4408; Seals PTFE/Graphoil/FKM; Pressure range 0...20bar; Medium temperature -20...+160°C; Nominal diameter 200mm; Length 457mm

Add to Cart

PAS2305 x 1.0

Pneumatic actuator PAS2305

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 230mm; Flange ISO5211 F16; Female square 46mm; Torque at 5,5bar 661Nm

Add to Cart

RI3819 x 1.0
