Flanged ball valve with pneumatic actuator Series BA178-S0-A Store

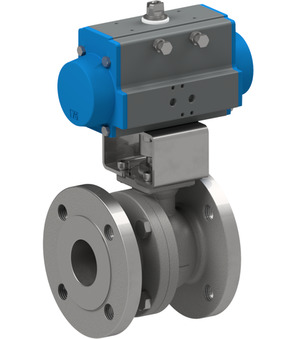

Flanged ball valve with pneumatic actuator BA178-40-S0A

Name: Flanged ball valve with pneumatic actuator BA178-40-S0A
SKU: BA178-40-S0A
Price: 1042.8 EUR
Availability: InStock

Flanged ball valve with pneumatic actuator Series BA178-S0-A; ATEX II 2 G/D; Fire-safe; TA-Luft; Length According to ANSI B16.10; Flange ANSI150; Full bore; Body 1.4408; Ball 1.4401; Seals PTFE/Graphoil/FKM; Single acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...20bar; Nominal diameter 40mm; Length 165mm; Actuator PAS0855

Intrastat No.: 84818081
Country of origin: Italy
Weight: 12.53 Kg
Short Itemnumber:BA17840S0A

flanged ball valve with pneumatic actuator series BA178-S0-A; ATEX II 2 G/D; fire-safe; TA-Luft; length according to ANSI B16.10; flange ANSI150; full bore; body AISI 316; ball AISI 316; seals PTFE/Graphoil/FKM; single acting actuator ATEX II 2 G/D c T6; control pressure 5,5...8bar; medium temperature -20...+160°C; pressure range 0...20bar; nominal diameter 40mm; length 165mm; actuator PAS0855

1.042,80 € 1042.8 EUR 1.042,80 €

DN
- 40 mm
Length
- 165 mm
Design
- ATEX
Actuator
- PAS0855

This combination does not exist.

Availability:

In den Warenkorb

Specifications
Spare Parts

dimension
DN	40 mm
Length	165 mm
design
Design	ATEX
characteristics
Actuator	PAS0855

BA178-40-S0 x 1.0

Flanged ball valve with pneumatic actuator BA178-40-S0

Flanged ball valve with pneumatic actuator Series BA178-S0; Fire-safe; TA-Luft; Length According to ANSI B16.10; Flange ANSI150; Full bore; Body 1.4408; Ball 1.4401; Seals PTFE/Graphoil/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...20bar; Nominal diameter 40mm; Length 165mm; Actuator PAS0855

Add to Cart
