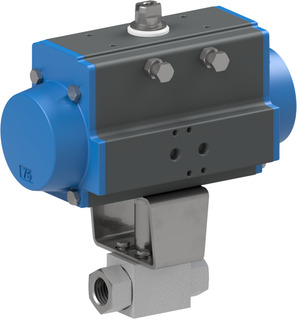

Ball valve with pneumatic actuator BA233-14-D0

Ball valve with pneumatic actuator BA233-14-D0

Ball valve with pneumatic actuator Series BA233; Female thread; Body Zinc plated steel; Ball Steel; Seals POM/NBR; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+100°C; For liquids; G 1/4"; Nominal diameter 6mm; Pressure range 0...500bar; Length 69mm; Actuator PAD063

Kugelhahn mit Druckluftdrehantrieb Serie BA233
Kugelhahn mit Druckluftdrehantrieb Serie BA233
Intrastat No.: 84818081
Country of origin: Germany Made in Europe
Weight: 2.48 Kg
Short Itemnumber: BA23314D0
https://www.stasto.hu/web/image/product.template/139674/image_1920?unique=c9dcbdf

ball valve with pneumatic actuator series BA233; female thread; body zinc plated steel; ball steel; seals POM/NBR; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+100°C; for liquids; G 1/4"; nominal diameter 6mm; pressure range 0...500bar; length 69mm; actuator PAD063

420,40 € 420.4 EUR 420,40 €

ár kérésre

excl. tax
  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • Female thread
  • DN
  • Length
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Pressure range
  • Contact material
  • Material of case
  • Coil
  • Actuator

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...500 bar
DN 6 mm
Length 69 mm
Female thread G 1/4"
Documents
Data sheets, drawings and CAD files
Pressure range 0...500 bar
DN 6 mm
Length 69 mm
Female thread G 1/4"

BA233-14-D0

Documents

1 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1
Danish / Dansk
ZIP

Data Sheets

1
German / Deutsch
ZIP

Data Sheets

1
Greek / Ελληνικά
ZIP

Data Sheets

1
English
ZIP

Data Sheets

1
Spanish / Español
ZIP

Data Sheets

1
Finnish / Suomi
ZIP

Data Sheets

1
French / Français
ZIP

Data Sheets

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1
Hungarian / Magyar
ZIP

Data Sheets

1
Italian / Italiano
ZIP

Data Sheets

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1
Dutch / Nederlands
ZIP

Data Sheets

1
Polish / Język polski
ZIP

Data Sheets

1
Romanian / română
ZIP

Data Sheets

1
Slovenian / slovenščina
ZIP

Data Sheets

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1
Swedish / Svenska
ZIP

Data Sheets

1
BA233-14-B x 1.0 Pcs
High pressure ball valve BA233-14-B
High pressure ball valve Series BA233; Female thread; Drilled for mounting an actuator; Body Zinc plated steel; Ball Steel; Seals POM/NBR; Medium temperature -20...+100°C; Flange Bolt circle 36mm, Distance of the mounting holes 18x31,2mm; Square 9mm; G 1/4"; Nominal diameter 6mm; Pressure range 0...500bar; Length 69mm
Pneumatic actuator PAD063
PAD063 x 1.0 Pcs
Pneumatic actuator PAD063
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 36Nm
MBNS0503-30 x 1.0 Pcs
MBNS0503-30
Mounting bridge; Zinc plated steel; Flange 1 F05; Flange 2 F03 30°; Height 60mm
A4/223/96 x 1.0 Pcs
A4/223/96
Bolt; 1.4305; Diameter 20mm; Height of the bolt 43mm; Male square 14mm; Height of the male square 15mm; Female square 9mm; Height of the female square 10mm
