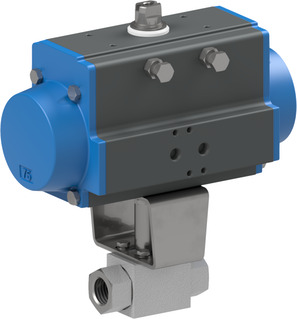

Ball valve with pneumatic actuator BA233-34-S0

Ball valve with pneumatic actuator BA233-34-S0

Ball valve with pneumatic actuator Series BA233; Female thread; Body Zinc plated steel; Ball Steel; Seals POM/NBR; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+100°C; For liquids; G 3/4"; Nominal diameter 20mm; Pressure range 0...420bar; Length 95mm; Actuator PAS1255

Kugelhahn mit Druckluftdrehantrieb Serie BA233
Kugelhahn mit Druckluftdrehantrieb Serie BA233
Intrastat No.: 84818081
Country of origin: Italy Made in Europe
Weight: 15.99 Kg
Short Itemnumber: BA23334S0
https://www.stasto.hu/web/image/product.template/139684/image_1920?unique=f514644

ball valve with pneumatic actuator series BA233; female thread; body zinc plated steel; ball steel; seals POM/NBR; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+100°C; for liquids; G 3/4"; nominal diameter 20mm; pressure range 0...420bar; length 95mm; actuator PAS1255

839,80 € 839.8 EUR 839,80 €

ár kérésre

excl. tax
  • Valve interface Namur
  • Female thread
  • DN
  • Length
  • Connector size
  • Design
  • Voltage
  • Pressure range
  • Coil
  • Actuator

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...420 bar
DN 20 mm
Length 95 mm
Female thread G 3/4"
Documents
Data sheets, drawings and CAD files
Pressure range 0...420 bar
DN 20 mm
Length 95 mm
Female thread G 3/4"

BA233-34-S0

Documents

2 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1

CAD / 3D

1
Danish / Dansk
ZIP

Data Sheets

1

CAD / 3D

1
German / Deutsch
ZIP

Data Sheets

1

CAD / 3D

1
Greek / Ελληνικά
ZIP

Data Sheets

1

CAD / 3D

1
English
ZIP

Data Sheets

1

CAD / 3D

1
Spanish / Español
ZIP

Data Sheets

1

CAD / 3D

1
Finnish / Suomi
ZIP

Data Sheets

1

CAD / 3D

1
French / Français
ZIP

Data Sheets

1

CAD / 3D

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1

CAD / 3D

1
Hungarian / Magyar
ZIP

Data Sheets

1

CAD / 3D

1
Italian / Italiano
ZIP

Data Sheets

1

CAD / 3D

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1

CAD / 3D

1
Dutch / Nederlands
ZIP

Data Sheets

1

CAD / 3D

1
Polish / Język polski
ZIP

Data Sheets

1

CAD / 3D

1
Romanian / română
ZIP

Data Sheets

1

CAD / 3D

1
Slovenian / slovenščina
ZIP

Data Sheets

1

CAD / 3D

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1

CAD / 3D

1
Swedish / Svenska
ZIP

Data Sheets

1

CAD / 3D

1
BA233-34-B x 1.0 Pcs
High pressure ball valve BA233-34-B
High pressure ball valve Series BA233; Female thread; Drilled for mounting an actuator; Body Zinc plated steel; Ball Steel; Seals POM/NBR; Medium temperature -20...+100°C;; G 3/4"; Nominal diameter 20mm; Pressure range 0...420bar; Length 95mm; Flange ISO5211 F05; Square 14mm
Pneumatic actuator PAS1255
PAS1255 x 1.0 Pcs
Pneumatic actuator PAS1255
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 125mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 88,1Nm
04808007001 x 1.0 Pcs
04808007001
Mounting bridge; Zinc plated steel; F05/F07-F05; Height 60mm
A4/338/99 x 1.0 Pcs
A4/338/99
Bolt; 1.4305; Diameter 25mm; Height of the bolt 54mm; Male square 14mm; Height of the male square 15mm; Female square 14mm; Height of the female square 15mm
