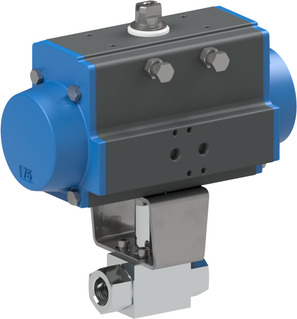

Ball valve with pneumatic actuator BA234-12-D0

Ball valve with pneumatic actuator BA234-12-D0

Ball valve with pneumatic actuator Series BA102; Female thread; Body, Ball 1.4571/1.4404; Seals POM/NBR; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -30...+100°C; For liquids; G 1/2"; Nominal diameter 13mm; Pressure range 0...500bar; Length 83mm; Actuator PAD075

Hochdruckkugelhahn Serie BA234-D0
Hochdruckkugelhahn Serie BA234-D0
Intrastat No.: 84818081
Country of origin: Italy
Weight: 3.65 Kg
Short Itemnumber: BA23412D0
https://www.stasto.hu/web/image/product.template/142285/image_1920?unique=7015653

ball valve with pneumatic actuator series BA102; female thread; body, ball AISI 316Ti/AISI 316L; seals POM/NBR; double acting actuator; control pressure 5,5...8bar; medium temperature -30...+100°C; for liquids; G 1/2"; nominal diameter 13mm; pressure range 0...500bar; length 83mm; actuator PAD075

519,90 € 519.9 EUR 519,90 €

ár kérésre

excl. tax
  • Valve interface Namur
  • Female thread
  • DN
  • Length
  • Connector size
  • Design
  • Voltage
  • Pressure range
  • Coil
  • Actuator

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...500 bar
Female thread G 1/2"
DN 13 mm
Length 83 mm
Documents
Data sheets, drawings and CAD files
Pressure range 0...500 bar
Female thread G 1/2"
DN 13 mm
Length 83 mm

BA234-12-D0

Documents

1 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1
Danish / Dansk
ZIP

Data Sheets

1
German / Deutsch
ZIP

Data Sheets

1
Greek / Ελληνικά
ZIP

Data Sheets

1
English
ZIP

Data Sheets

1
Spanish / Español
ZIP

Data Sheets

1
Finnish / Suomi
ZIP

Data Sheets

1
French / Français
ZIP

Data Sheets

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1
Hungarian / Magyar
ZIP

Data Sheets

1
Italian / Italiano
ZIP

Data Sheets

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1
Dutch / Nederlands
ZIP

Data Sheets

1
Polish / Język polski
ZIP

Data Sheets

1
Romanian / română
ZIP

Data Sheets

1
Slovenian / slovenščina
ZIP

Data Sheets

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1
Swedish / Svenska
ZIP

Data Sheets

1
BA234-12-B x 1.0 Pcs
High pressure ball valve BA234-12-B
High pressure ball valve Series BA234; Female thread; Drilled for mounting an actuator; Body, Ball 1.4571/1.4404; Seals POM/NBR; For liquids; Medium temperature -30...+100°C; G 1/2"; Nominal diameter 13mm; Pressure range 0...500bar; Length 83mm; Flange ISO5211 F03; Square 9mm
Pneumatic actuator PAD075
PAD075 x 1.0 Pcs
Pneumatic actuator PAD075
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 75mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 66Nm
04806007007 x 1.0 Pcs
04806007007
Mounting bridge; Zinc plated steel; Flange 1: F03/F04mm; Flange 2: F05; Height 50mm; Mounting table for RI3030
A4/223/96 x 1.0 Pcs
A4/223/96
Bolt; 1.4305; Diameter 20mm; Height of the bolt 43mm; Male square 14mm; Height of the male square 15mm; Female square 9mm; Height of the female square 10mm
