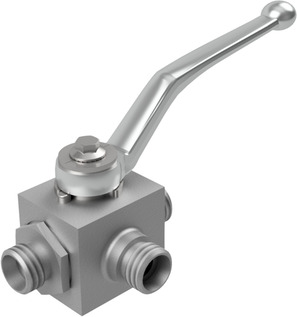

High pressure ball valve BA236-6L-L
High pressure ball valve Series BA236, BA646; 3-way-type; Sealing on two sides; Pressure inlet just in front; Male thread According to ISO 8434-1 (DIN 2353); Body Zinc plated steel; Ball Steel; Seals POM/NBR; Medium temperature -20...+100°C; For liquids; Connection 6L/M12x1,5; Nominal diameter 5mm; Pressure range 0...500bar; Length 67mm; Ball L
Intrastat No.: 84818081
Country of origin: Germany
Weight: 0.3 Kg
Short Itemnumber:BA2366LL
Country of origin: Germany
Weight: 0.3 Kg
Short Itemnumber:BA2366LL
high pressure ball valve series BA236, BA646; 3-way-type; sealing on two sides; pressure inlet just in front; male thread according to ISO 8434-1 (DIN 2353); body zinc plated steel; ball steel; seals POM/NBR; medium temperature -20...+100°C; for liquids; connection 6L/M12x1,5; nominal diameter 5mm; pressure range 0...500bar; length 67mm; ball L
| dimension | |
|---|---|
| Male thread | M12x1,5 |
| DN | 5 mm |
| Length | 67 mm |
| Designs | |
| Type | 6L |
| Ball | L |
| pressure | |
| Pressure range | 0...500 bar |
Data sheets, Instructions, 3D-files and Certificates...
In your language
ZIPData Sheets
1Data sheet_High pressure ball valve Series BA236, BA646_EN.pdf
Download
Declarations of Conformity
1Declaration of conformity_Ball valves for high pressure - steel_EN.pdf
Download
CAD / 3D
1CADSTEP_BA2366LL.stp
Download
No spare parts are available for this product.
