High pressure ball valve BA236-8L-L

Price.

55,65 €
High pressure ball valve Series BA236, BA646 Store
  1. Products
  2. Armatures
  3. Ball valves - manually operated
  4. Ball valves for high pressure - steel
  5. High pressure ball valve Series BA236, BA646
  6. BA236-8L-L

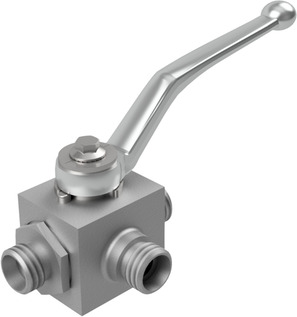

High pressure ball valve BA236-8L-L
High pressure ball valve BA646-8L-L
High pressure ball valve BA646-8L-L
55,65 €
55,65 €
High pressure ball valve BA646-16S-L
High pressure ball valve BA646-16S-L
63,82 €
63,82 €

High pressure ball valve BA236-8L-L

High pressure ball valve Series BA236, BA646; 3-way-type; Sealing on two sides; Pressure inlet just in front; Male thread According to ISO 8434-1 (DIN 2353); Body Zinc plated steel; Ball Steel; Seals POM/NBR; Medium temperature -20...+100°C; For liquids; Connection 8L/M14x1,5; Nominal diameter 6mm; Pressure range 0...500bar; Length 67mm; Ball L

Intrastat No.: 84818081
Country of origin: Germany
Weight: 0.4 Kg
Short Itemnumber:BA2368LL
https://www.stasto.hu/web/image/product.template/137404/image_1920?unique=2db8ee0

high pressure ball valve series BA236, BA646; 3-way-type; sealing on two sides; pressure inlet just in front; male thread according to ISO 8434-1 (DIN 2353); body zinc plated steel; ball steel; seals POM/NBR; medium temperature -20...+100°C; for liquids; connection 8L/M14x1,5; nominal diameter 6mm; pressure range 0...500bar; length 67mm; ball L

55,65 € 55.65 EUR 55,65 €

ár kérésre

  • Male thread
  • DN
  • Length
  • Type
  • Ball
  • Pressure range

This combination does not exist.

Availability:
Contact Us
dimension
Male thread M14x1,5
DN 6 mm
Length 67 mm
Designs
Type 8L
Ball L
pressure
Pressure range 0...500 bar
