BA237-25-CH-01

BA237-25-CH-01

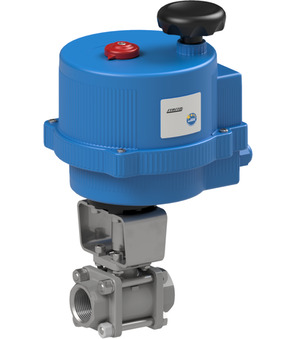

Ball valve with electrical actuator; Full bore; Three-parts type; Socket weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Medium temperature -20...+160°C; Nominal diameter 25mm; Pressure range 0...40bar; Length 92mm; With control ball V 30...60; Operating time 8s; Voltage 100-240V/50-60Hz; Positioner 4-20mA/0-10V

Intrastat No.: 84818081
Country of origin: Italy
Weight: 3.82 Kg
Short Itemnumber: BA23725CH01
https://www.stasto.hu/web/image/product.template/138328/image_1920?unique=f96ddcc

ball valve with electrical actuator; full bore; three-parts type; socket weld ends; body, ball AISI 316; seals PTFE-reinforced/FKM; medium temperature -20...+160°C; nominal diameter 25mm; pressure range 0...40bar; length 92mm; with control ball V 30...60; operating time 8s; voltage 100-240V/50-60Hz; positioner 4-20mA/0-10V

999.999,00 € 999999.0 EUR 999.999,00 €

On request

  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...40bar
Brand STASTO
Documents
Data sheets, drawings and CAD files
Pressure range 0...40bar
Brand STASTO

BA237-25-CH-01

Documents

1 Documents 7 Languages

Czech / Čeština
ZIP

Declarations of Conformity

1
German / Deutsch
ZIP

Declarations of Conformity

1
English
ZIP

Declarations of Conformity

1
Hungarian / Magyar
ZIP

Declarations of Conformity

1
Polish / Język polski
ZIP

Declarations of Conformity

1
Slovenian / slovenščina
ZIP

Declarations of Conformity

1
Serbian (Latin) / srpski
ZIP

Declarations of Conformity

1
BA237-25-L-01 x 1.0 Pcs
BA237-25-L-01
Ball valve made of stainless steel; Full bore; Three-parts type; Socket weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Medium temperature -20...+160°C; Nominal diameter 25mm; Pressure range 0...40bar; Length 92mm; With control ball V 30...60
Electrical actuator VB030-H-P0S
VB030-H-P0S x 1.0 Pcs
Electrical actuator VB030-H-P0S
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Incl. Positioner 4-20mA/0-10V; Torque 30Nm; Operating time 8s; Flange ISO5211 F03/F05-Stern 11 mm; Voltage 100-240VAC; Protection class IP67
RI3030 x 1.0 Pcs
RI3030
Mounting bracket; F05/F03-F04,11-8
