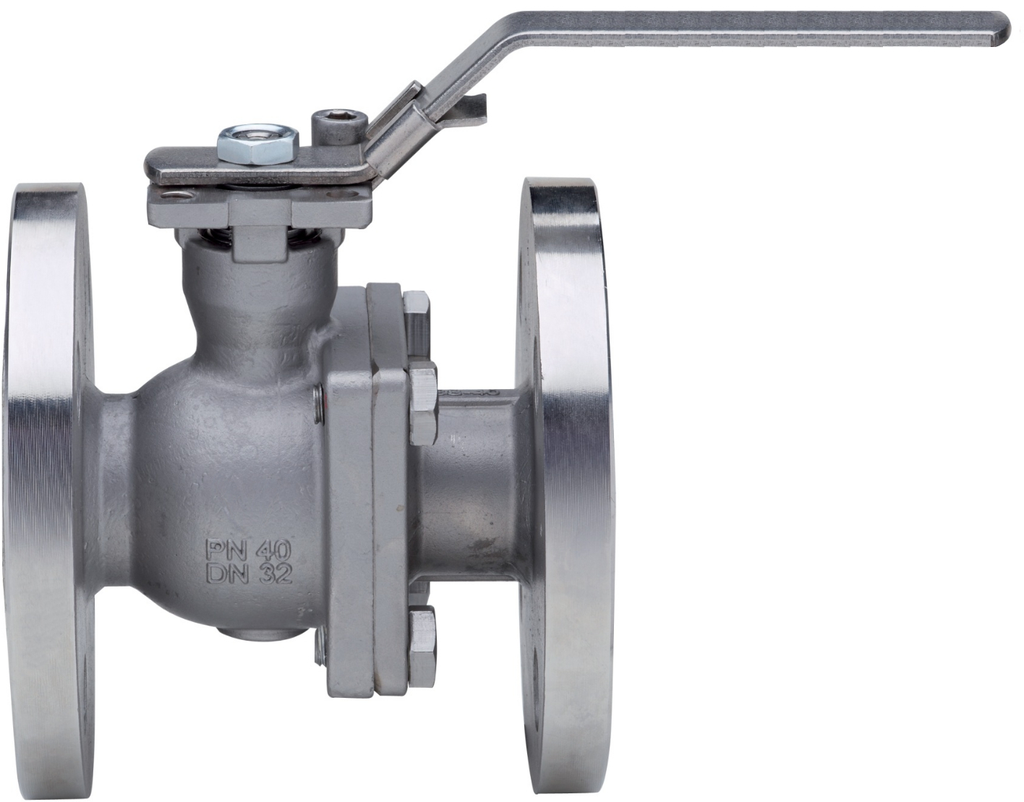

Flanged ball valve Series BA284-LLD-A; For steam; ATEX II 2 G/D; Fire-safe; TA-Luft; Length According to EN558−1R27; Full bore; Body, Ball 1.4408; Stem Reinforced 17-4-PH; Seals PTFE-Graphite reinforced/Graphoil/FKM; Pressure range Steam 0…15bar; Medium temperature -20...+198°C; With locking device; Nominal diameter 100mm; Flange PN16; Length 190mm
Country of origin: Italy
Weight: 23.4 Kg
Short Itemnumber: BA284100LLDA
flanged ball valve series BA284-LLD-A; for steam; ATEX II 2 G/D; fire-safe; TA-Luft;length according to EN558−1R27; full bore; body, ball AISI 316; seals PTFE-graphite reinforced/Graphoil/FKM; pressure range steam 0…15bar; medium temperature -20...+198°C; with locking device; nominal diameter 100mm; flange PN16; length 190mm
Technical specifications
| Pressure range | Steam 0…15bar |
|---|---|
| DN | 100 mm |
| Flange | PN16 |
| Length | 190 mm |
| Pressure range | Steam 0…15bar |
| DN | 100 mm |
| Flange | PN16 |
| Length | 190 mm |
| Design | ATEX |
BA284-100-LLD-A
