BA346-12-D0-A
BA346-12-0L
BA346-12-0L
ár kérésre
BA346-12-S0-A
BA346-12-S0-A
417,10 €
417,10 €

BA346-12-D0-A

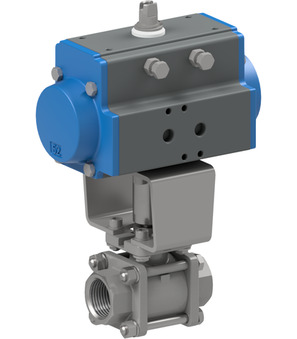

Ball valve with pneumatic actuator Series BA346-D-A; ATEX II 2 G/D c T3; Full bore; Three-parts type; Female thread; Body, Ball 1.4408; Seals PTFE/FFKM; Double acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 1/2"; Nominal diameter 15mm; Pressure range 0...64bar; Length 65mm; Actuator PAD052

Intrastat No.: 84818081
Country of origin: Italy
Weight: 1.693 Kg
Short Itemnumber:BA34612D0A
https://www.stasto.hu/web/image/product.template/155197/image_1920?unique=db8c1ce

ball valve with pneumatic actuator series BA346-D-A; ATEX II 2 G/D c T3; three-parts type; female thread; body, ball AISI 316; seals PTFE/FFKM; double acting actuator ATEX II 2 G/D c T6; control pressure 5,5...8bar; medium temperature -20...+160°C; RP 1/2"; nominal diameter 15mm; pressure range 0...64bar; length 65mm; actuator PAD052

410,00 € 410.0 EUR 410,00 €

ár kérésre

  • Design

This combination does not exist.

Availability:
Contact Us
Design ATEX
BA346-12-L-A
BA346-12-L-A x 1.0
BA346-12-L-A
Ball valve made of stainless steel Series BA346-L-A; ATEX II 2 G/D c T3; TA-Luft; Full bore; Three-parts type; Female thread; Body, Ball 1.4408; Seals PTFE/FFKM; Medium temperature -20...+160°C; RP 1/2"; Nominal diameter 15mm; Pressure range 0...64bar; Length 65mm
Add to Cart
Pneumatic actuator PAD052
PAD052 x 1.0
Pneumatic actuator PAD052
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 52mm; Flange ISO5211 F03/F05; Female square 11mm; Torque at 5,5bar 20Nm
Add to Cart
