Flanged ball valve with pneumatic actuator Series BA353 Store

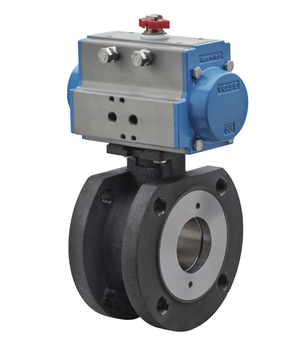

Flanged ball valve with pneumatic actuator BA353-65-D0-A

Name: Flanged ball valve with pneumatic actuator BA353-65-D0-A
Brand: STASTO
SKU: BA353-65-D0-A
Price: 868.5 EUR
Availability: InStock

Flanged ball valve with pneumatic actuator Series BA353; ATEX II 2 G/D; Flange PN16; Body Steel A352-LCB; Ball 1.4301; Seals MPTFE/PTFE/FKM; Double acting actuator ATEX II 2G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+180°C; Pressure range 0...16bar; Nominal diameter 65mm; Length 103mm; Actuator PAD063

Intrastat No.: 84818081
Country of origin: Italy
Weight: 12.56 Kg
Short Itemnumber:BA35365D0A

flanged ball valve with pneumatic actuator series BA353; ATEX II 2 G/D; flange PN16; body steel A352-LCB; ball AISI 304; seals MPTFE/PTFE/FKM; double acting actuator ATEX II 2G/D c T6; control pressure 5,5...8bar; medium temperature -20...+180°C; pressure range 0...16bar; nominal diameter 65mm; length 103mm; actuator PAD063

868,50 € 868.5 EUR 868,50 €

DN
- 65 mm
Length
- 103 mm
Design
- ATEX
Actuator
- PAD063

This combination does not exist.

Availability:

In den Warenkorb

Specifications
Spare Parts

dimension
DN	65 mm
Length	103 mm
design
Design	ATEX
characteristics
Actuator	PAD063

BA353-65-B-A x 1.0

BA353-65-B-A

Flanged ball valve; ATEX II 2G/D c T3; Bare shaft; Flange PN16; Full bore; Body Steel; Ball 1.4301; Seals MPTFE/PTFE/FKM; Pressure range 0...16bar; Medium temperature -20...+180°C; Nominal diameter 65mm; Length 103mm; Flange ISO5211 F07; Square 14mm

Add to Cart

PAD063 x 1.0

Pneumatic actuator PAD063

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 36Nm

Add to Cart
