BA368-100-S0-A

Name: BA368-100-S0-A
Brand: STASTO
SKU: BA368-100-S0-A
Price: 3693.8 EUR
Availability: InStock

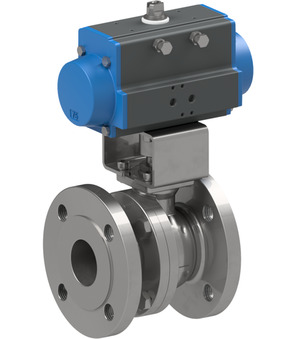

Flanged ball valve with pneumatic actuator; ATEX II 2 G/D c T3; Fire-Safe; TA-Luft; Overall length according to EN558-1R27; Body, Ball 1.4408; Seals TFM-MPTFE/Graphoil/V-Pack PTFE; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -40...+180°C; Nominal diameter 100mm; Pressure range 0...16bar; Flange PN16; Length 190mm; Actuator PAS1605

Intrastat No.: 84818081
Country of origin: Italy
Weight: 58.31 Kg
Short Itemnumber: BA368100S0A

flanged ball valve with pneumatic actuator; ATEX II 2 G/D c T3; Fire-Safe; TA-Luft; Overall length according to EN558-1R27; body, ball AISI 316; seals TFM-MPTFE/Graphoil/V-Pack PTFE; single acting actuator; control pressure 5,5...8bar; medium temperature -40...+180°C; nominal diameter 100mm; pressure range 0...16bar; flange PN16; length 190mm; actuator PAS1605

3.693,80 € 3693.8 EUR 3.693,80 €

Design
- ATEX

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

Design

ATEX

BA368-100-LLD-A x 1.0

BA368-100-LLD-A

Flanged ball valve Series BA368-LLD-A; ATEX II 2 G/D; Fire-safe; TA-Luft; Length According to EN558−1R27; Full bore; Body, Ball 1.4408; Seals TFM-MPTFE/PTFE/Graphoil; Stem sealing V-Pack; Medium temperature -40...+180°C; With locking device; Nominal diameter 100mm; Pressure range 0...16bar; Flange PN16; Length 190mm

Add to Cart

PAS1605 x 1.0

Pneumatic actuator PAS1605

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 160mm; Flange ISO5211 F10/F12; Female square 27mm; Torque at 5,5bar 202Nm

Add to Cart
