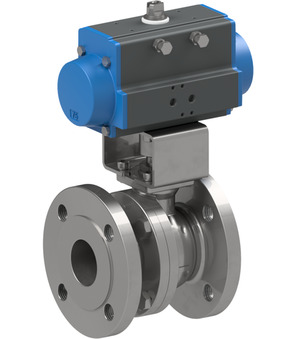

BA368-65-S0-A-01

BA368-65-S0-A-01

flanged ball valve with pneumatic actuator; ATEX II 2 G/D c T3; fire-safe; TA-Luft; length according to EN558−1R27; housing, ball AISI 316; seals TFM-MPTFE/Graphoil/V-Pack PTFE; single acting actuator; control pressure 5,5...8bar; medium temperature -40...+180°C; nominal diameter 65mm; pressure range 0...16bar; flange PN16; length 170mm; actuator PAS1155-L low temperature equipment

Intrastat No.: 84818081
Country of origin: Italy
Weight: 27.68 Kg
Short Itemnumber: BA36865S0A01
https://www.stasto.hu/web/image/product.template/175554/image_1920?unique=94b97ec

flanged ball valve with pneumatic actuator; ATEX II 2 G/D c T3; fire-safe; TA-Luft; length according to EN558−1R27; housing, ball AISI 316; seals TFM-MPTFE/Graphoil/V-Pack PTFE; single acting actuator; control pressure 5,5...8bar; medium temperature -40...+180°C; nominal diameter 65mm; pressure range 0...16bar; flange PN16; length 170mm; actuator PAS1155-L low temperature equipment

2.141,60 € 2141.6 EUR 2.141,60 €

ár kérésre

  • Design

This combination does not exist.

Availability:
Contact Us

Share

Design ATEX
Flanged ball valve BA368-65-LLD-A
BA368-65-LLD-A x 1.0
Flanged ball valve BA368-65-LLD-A
Flanged ball valve Series BA368-LLD-A; ATEX II 2 G/D; Fire-safe; TA-Luft; Length According to EN558−1R27; Full bore; Body, Ball 1.4408; Seals TFM-MPTFE/PTFE/Graphoil; Stem sealing V-Pack;Medium temperature -40...+180°C; With locking device; Nominal diameter 65mm; Pressure range 0...16bar; Flange PN16; Length 170mm
Add to Cart
Pneumatic actuator PAS1155-L
PAS1155-L x 1.0
Pneumatic actuator PAS1155-L
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Seals Silicone; Temperature range -40...+85°C; Diameter 115mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 71,1Nm
