BA368-80-S0-A-01

Name: BA368-80-S0-A-01
Brand: STASTO
SKU: BA368-80-S0-A-01
Price: 2631.5 EUR
Availability: InStock

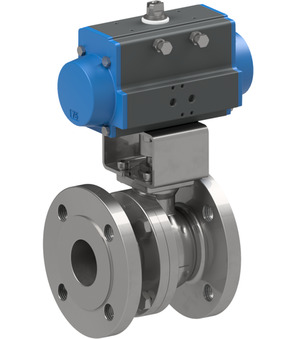

Flanged ball valve with pneumatic actuator; ATEX II 2 G/D c T3; Fire-safe; TA-Luft; Length According to EN558−1R27; Body, Ball 1.4408; Seals TFM-MPTFE/Graphoil/V-Pack PTFE; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -40...+180°C; Nominal diameter 80mm; Pressure range 0...16bar; Flange PN16; Length 180mm; Actuator PAS1255-L

Intrastat No.: 84818081
Country of origin: Italy
Weight: 36.54 Kg
Short Itemnumber: BA36880S0A01

flanged ball valve with pneumatic actuator; ATEX II 2 G/D c T3; fire-safe; TA-Luft; length according to EN558−1R27; body, ball AISI 316; seals TFM-MPTFE/Graphoil/V-Pack PTFE; single acting actuator; control pressure 5,5...8bar; medium temperature -40...+180°C; nominal diameter 80mm; pressure range 0...16bar; flange PN16; length 180mm; actuator PAS1255-L

2.631,50 € 2631.5 EUR 2.631,50 €

Design
- ATEX

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

Design

ATEX

BA368-80-LLD-A x 1.0

Flanged ball valve BA368-80-LLD-A

Flanged ball valve Series BA368-LLD-A; ATEX II 2 G/D; Fire-safe; TA-Luft; Length According to EN558−1R27; Full bore; Body, Ball 1.4408; Seals TFM-MPTFE/PTFE/Graphoil; Stem sealing V-Pack;Medium temperature -40...+180°C; With locking device; Nominal diameter 80mm; Pressure range 0...16bar; Flange PN16; Length 180mm

Add to Cart

PAS1255-L x 1.0

Pneumatic actuator PAS1255-L

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Seals Silicone; Temperature range -40...+85°C; Diameter 125mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 88,1Nm

Add to Cart

RI3528 x 1.0
