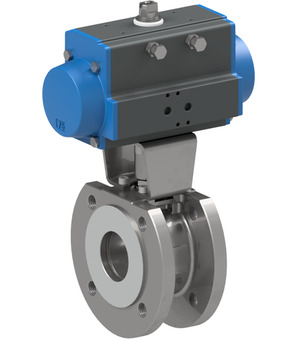

Flanged ball valve with pneumatic actuator BA389-40-D0-A3C

Name: Flanged ball valve with pneumatic actuator BA389-40-D0-A3C
Brand: STASTO
SKU: BA389-40-D0-A3C
Price: 933.7 EUR
Availability: InStock

Flanged ball valve with pneumatic actuator Series BA389-D0-A3C; ATEX II 2 G/D; Fire-safe; TA-Luft; Flange PN16/40; Body, Ball 1.4401; Seals TFM-MPTFE/PTFE/Graphoil; Stem sealing V-Pack; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -40...+180°C; Pressure range 0...40bar; Nominal diameter 40mm; Length 64mm; Actuator PAD075; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness

Intrastat No.: 84818081
Country of origin: Italy
Weight: 8.76 Kg
Short Itemnumber: BA38940D0A3C

flanged ball valve with pneumatic actuator series BA389-D0-A3C; ATEX II 2 G/D; fire-safe; TA-Luft; flange PN16/40; body, ball AISI 316; seals TFM-MPTFE/PTFE/Graphoil; stem sealing V-Pack; double acting actuator; control pressure 5,5...8bar; medium temperature -40...+180°C; pressure range 0...40bar; nominal diameter 40mm; length 64mm; actuator PAD075; incl. inspection certificate EN-10204-3.1; for material, pressure, function and tightness

933,70 € 933.7 EUR 933,70 €

excl. tax

DN
- 40 mm
Length
- 63,5 mm
Design
- ATEX
Pressure range
- 0...16 bar
Actuator
- PAD063
Brand
- STASTO

This combination does not exist.

Availability:

See availability

Add to cart

Technical specifications

Pressure range	0...16 bar
DN	40 mm
Length	63,5 mm
Design	ATEX

All specifications (5)

Specifications
Spare Parts

Pressure range	0...16 bar
DN	40 mm
Length	63,5 mm
Design	ATEX
Brand	STASTO

BA389-40-L-A3C x 1.0 Pcs

BA389-40-L-A3C

Flanged ball valve Series BA389-L-A3C; ATEX II 2 G/D c T3; Fire-safe; TA-Luft; Full bore; Body, Ball 1.4401; Seals TFM-MPTFE/PTFE/Graphoil; Stem sealing V-Pack; Medium temperature -40...+180°C; Nominal diameter 40mm; Pressure range 0...40bar; Flange PN16/40; Length 64mm; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness
