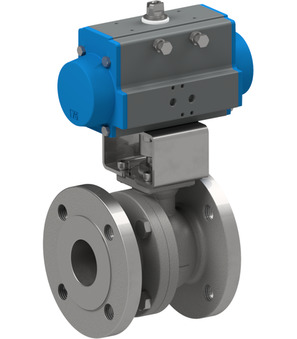

Flanged ball valve with pneumatic actuator BA413-40-S0-A3C

Flanged ball valve with pneumatic actuator BA413-40-S0-A3C

flanged ball valve with pneumatic actuator series BA413-S0-A3C; ATEX II 2 G/D; fire-safe; TA-Luft; length according to ANSI B16.10; flange ANSI150; full bore; body AISI 316; ball AISI 316; seals TFM-MPTFE/Graphoil/V-Pack PTFE; medium temperature -40...+180°C; single acting actuator; control pressure 5,5...8bar; pressure range 0...20bar; nominal diameter 40mm; length 165mm; actuator PAS0855; incl. inspection certificate EN-10204-3.1; for material, pressure, function and tightness

Intrastat No.: 84818081
Country of origin: Italy Made in Europe
Weight: 12.53 Kg
Short Itemnumber: BA41340S0A3C
https://www.stasto.hu/web/image/product.template/221425/image_1920?unique=8837849

flanged ball valve with pneumatic actuator series BA413-S0-A3C; ATEX II 2 G/D; fire-safe; TA-Luft; length according to ANSI B16.10; flange ANSI150; full bore; body AISI 316; ball AISI 316; seals TFM-MPTFE/Graphoil/V-Pack PTFE; medium temperature -40...+180°C; single acting actuator; control pressure 5,5...8bar; pressure range 0...20bar; nominal diameter 40mm; length 165mm; actuator PAS0855; incl. inspection certificate EN-10204-3.1; for material, pressure, function and tightness

1.209,40 € 1209.4 EUR 1.209,40 €

ár kérésre

excl. tax
  • DN
  • Length
  • Connector size
  • Design
  • Voltage
  • Actuator

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...20bar
DN 40 mm
Length 165 mm
Design ATEX
Documents
Data sheets, drawings and CAD files
Pressure range 0...20bar
DN 40 mm
Length 165 mm
Design ATEX

BA413-40-S0-A3C

Documents

1 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1
Danish / Dansk
ZIP

Data Sheets

1
German / Deutsch
ZIP

Data Sheets

1
Greek / Ελληνικά
ZIP

Data Sheets

1
English
ZIP

Data Sheets

1
Spanish / Español
ZIP

Data Sheets

1
Finnish / Suomi
ZIP

Data Sheets

1
French / Français
ZIP

Data Sheets

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1
Hungarian / Magyar
ZIP

Data Sheets

1
Italian / Italiano
ZIP

Data Sheets

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1
Dutch / Nederlands
ZIP

Data Sheets

1
Polish / Język polski
ZIP

Data Sheets

1
Romanian / română
ZIP

Data Sheets

1
Slovenian / slovenščina
ZIP

Data Sheets

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1
Swedish / Svenska
ZIP

Data Sheets

1
BA413-40-LLD-A3C x 1.0 Pcs
BA413-40-LLD-A3C
Flanged ball valve Series BA413-LLD-A3C; ATEX II 2 G/D c T3; Fire-safe; TA-Luft; Length According to ANSI B16.10; Full bore; Body, Ball 1.4408; Seals TFM-MPTFE/Graphoil/V-Pack PTFE; Medium temperature -40...+180°C; With locking device; Nominal diameter 40mm; Pressure range 0...20bar; Flange ANSI150; Length 165mm; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness
Pneumatic actuator PAS0855
PAS0855 x 1.0 Pcs
Pneumatic actuator PAS0855
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 28,7Nm
RI3526 x 1.0 Pcs
RI3526
Mounting kit for PKH F07/F05-F05 stud 17-10
