Ball valve with pneumatic actuator BA446-20-S0-AH

Price.

999.999,00 €
Ball valve with pneumatic actuator Series BA446-S0AH Store
  1. Products
  2. Armatures
  3. Ball valves - automatically operated
  4. Other materiales - A03
  5. Ball valve with pneumatic actuator Series BA446-S0AH
  6. BA446-20-S0-AH

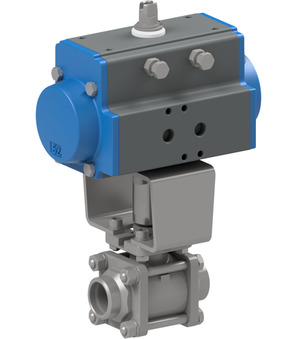

Ball valve with pneumatic actuator BA446-20-S0-AH
Ball valve with pneumatic actuator BA446-15-S0-AH
Ball valve with pneumatic actuator BA446-15-S0-AH
ár kérésre
Ball valve with pneumatic actuator BA446-25-S0-AH
Ball valve with pneumatic actuator BA446-25-S0-AH
ár kérésre

Ball valve with pneumatic actuator BA446-20-S0-AH

ball valve with pneumatic actuator; ATEX II 2 G/D T4; Anschluss Anschweißenden gemäß ISO 11850; housing, ball AISI 316; seals PTFE/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+170°C; nominal diameter 20mm; pressure range 0-100bar; length 102mm; actuator PAS0855; free of oil and grease for hydrogen

Intrastat No.: 84818081
Country of origin: Italy
Short Itemnumber:BA44620S0AH
https://www.stasto.hu/web/image/product.template/178572/image_1920?unique=8dc213e

ball valve with pneumatic actuator; ATEX II 2 G/D T4; Anschluss Anschweißenden gemäß ISO 11850; housing, ball AISI 316; seals PTFE/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+170°C; nominal diameter 20mm; pressure range 0-100bar; length 102mm; actuator PAS0855; free of oil and grease for hydrogen

999.999,00 € 999999.0 EUR 999.999,00 €

ár kérésre

  • Female thread
  • DN
  • Length
  • Design
  • Pressure range
  • Actuator

This combination does not exist.

Availability:
Contact Us
Design ATEX
BA446-20-B-AH x 1.0
BA446-20-B-AH
ball valve made of stainless steel; ATEX II 2 G/D T4; full bore; housing and ball AISI 316; seals PTFE/FKM; medium temperature -20...+170°C; connection butt weld ends according to ISO 11850; nominal diameter 20mm; pressure range 0…100bar; length 102mm; free of oil and grease for hydrogen; flange ISO5211 F04; square 11mm
Add to Cart
Pneumatic actuator PAS0855
PAS0855 x 1.0
Pneumatic actuator PAS0855
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 28,7Nm
Add to Cart
04806007007 x 1.0
04806007007
Mounting bridge; Zinc plated steel; Flange 1: F03/F04mm; Flange 2: F05; Height 50mm; Mounting table for RI3030
Add to Cart
IV/00023/09 x 1.0
IV/00023/09
Bolt; 1.4305; Diameter 25mm; Height of the bolt 50mm; Male square 14mm; Height of the male square 15mm; Female square 11mm; Height of the female square 10mm
