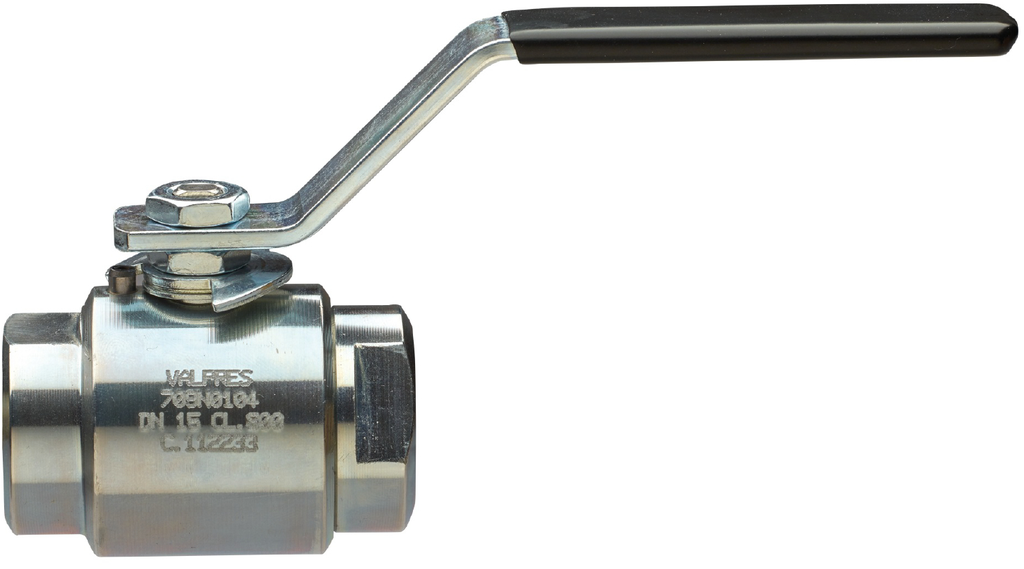

Stainless steel ball valve Series BA469-LLD-A3C; ATEX II 2 G/D; Fire-Safe; full passage; two-part; Internal thread; Housing, Ball 1.4404; Seals PTFE carbographite-reinforced; Medium temperature -20...+160°C; Nominal diameter 25mm; Pressure range 0...138bar; Connection RP 1"; Installation length 105mm; Oil and grease free; Class 800; with shut-off device; incl. Inspection certificate EN-10204-3.1; for material, pressure, function and tightness
Country of origin: Italy
Weight: 2.17 Kg
Short Itemnumber: BA46910LLDA3C
Stainless steel ball valve Series BA469-LLD-A3C; ATEX II 2 G/D; Fire-Safe; full passage; two-part; Internal thread; Housing, Ball 1.4404; Seals PTFE carbographite-reinforced; Medium temperature -20...+160°C; Nominal diameter 25mm; Pressure range 0...138bar; Connection RP 1"; Installation length 105mm; Oil and grease free; Class 800; with shut-off device; incl. Inspection certificate EN-10204-3.1; for material, pressure, function and tightness
Technical specifications
| Pressure range | 0...138 bar |
|---|---|
| Connection | RP 1" |
| DN | 25 mm |
| Length | 105 mm |
| Pressure range | 0...138 bar |
| Connection | RP 1" |
| DN | 25 mm |
| Length | 105 mm |
| Female thread | RP 1" |
| Design | ATEX |
BA469-10-LLD-A3C
