BA541-12-0L-01

BA541-12-0L-01

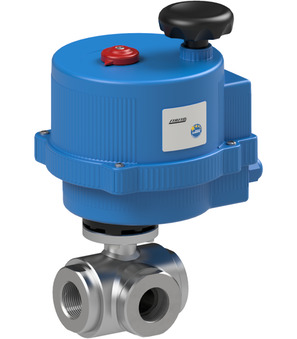

Ball valve with electrical actuator; 3-way-type; Sealing on three ports; Body 1.4404 Polished, Ball 1.4404; Seals PTFE/FKM; Full bore; Medium temperature 0...+100°C; G 1/2"; DN 15mm; Pressure range 0-40bar; Length 82mm; Operating time 8s; Voltage 24VAC/DC; Ball T; Actuator Oversized VB030-L

Intrastat No.: 84818081
Country of origin: Italy
Weight: 3.233 Kg
Short Itemnumber: BA541120L01
https://www.stasto.hu/web/image/product.template/137277/image_1920?unique=d79ab69

ball valve with electrical actuator; 3-way-type; sealing on three ports; body AISI 316L polished, ball AISI 316L; seals PTFE/FKM; full bore; medium temperature 0...+100°C; G 1/2"; DN 15mm; pressure range 0-40bar; length 82mm; operating time 8s; voltage 24VAC/DC; ball T; actuator oversized VB030-L

836,00 € 836.0 EUR 836,00 €

ár kérésre

excl. tax
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0-40bar
Brand STASTO
Documents
Data sheets, drawings and CAD files
Pressure range 0-40bar
Brand STASTO

BA541-12-0L-01

Documents

1 Documents

Language-independent
ZIP

CAD / 3D

1
Ball valve made of stainless steel BA541-12-B
BA541-12-B x 1.0 Pcs
Ball valve made of stainless steel BA541-12-B
Ball valve made of stainless steel Series BA541, BA542; Bare shaft; 3-way-type; Female thread; Full bore; Body 1.4404 Polished; Ball 1.4404; Seals MPTFE/FKM; Sealing on three ports; Medium temperature -20...+170°C; G 1/2"; Nominal diameter 15mm; Pressure range 0...100bar; Length 82mm; Ball T; Flange ISO5211 F03; Square 9mm
Electrical actuator VB030-L
VB030-L x 1.0 Pcs
Electrical actuator VB030-L
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 30Nm; Operating time 8s; Flange ISO5211 F03/F05-Stern 11 mm; Voltage 24VAC/DC; Protection class IP67
