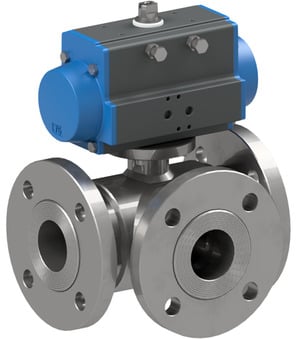

Flanged ball valve with pneumatic actuator BA544-40-S4-A03C-01

Flanged ball valve with pneumatic actuator BA544-40-S4-A03C-01

flanged ball valve with pneumatic actuator series BA544-S-A03C-01; ATEX II 2 G/D T4; 3-way-type; sealing on three ports; body AISI 316L polished; ball AISI 316L; seals PTFE/FKM; single acting actuator; control pressure 5...8bar; medium temperature -20...+170°C; nominal diameter 40mm; length 200mm; pressure range 0...20bar; flange ANSI150; actuator PAS1254; ball L; free of oil and grease for oxygen; incl. inspection certificate EN-10204-3.1; for material, pressure, function and tightness

Flanschkugelhahn mit Druckluftdrehantrieb Serie BA055, BA056
Flanschkugelhahn mit Druckluftdrehantrieb Serie BA055, BA056
Flanschkugelhahn mit Druckluftdrehantrieb Serie BA055, BA056
Intrastat No.: 84818081
Country of origin: Italy Made in Europe
Weight: 29.92 Kg
Short Itemnumber: BA54440S4A03C01
https://www.stasto.hu/web/image/product.template/236627/image_1920?unique=2c328f5

flanged ball valve with pneumatic actuator series BA544-S-A03C-01; ATEX II 2 G/D T4; 3-way-type; sealing on three ports; body AISI 316L polished; ball AISI 316L; seals PTFE/FKM; single acting actuator; control pressure 5...8bar; medium temperature -20...+170°C; nominal diameter 40mm; length 200mm; pressure range 0...20bar; flange ANSI150; actuator PAS1254; ball L; free of oil and grease for oxygen; incl. inspection certificate EN-10204-3.1; for material, pressure, function and tightness

2.594,40 € 2594.4 EUR 2.594,40 €

ár kérésre

excl. tax
  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • DN
  • Length
  • Flange
  • Connector size
  • Ball
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Pressure range
  • Contact material
  • Material of case
  • Coil
  • Actuator
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...40 bar
DN 25 mm
Length 150 mm
Flange PN40
All specifications (7)
Documents
Data sheets, drawings and CAD files
Pressure range 0...40 bar
DN 25 mm
Length 150 mm
Flange PN40
Ball L
Design ATEX
Brand STASTO

BA544-40-S4-A03C-01

Documents

3 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

2

Declarations of Conformity

1
Danish / Dansk
ZIP

Data Sheets

2
German / Deutsch
ZIP

Data Sheets

2

Declarations of Conformity

1
Greek / Ελληνικά
ZIP

Data Sheets

2
English
ZIP

Data Sheets

2

Declarations of Conformity

1
Spanish / Español
ZIP

Data Sheets

2
Finnish / Suomi
ZIP

Data Sheets

2
French / Français
ZIP

Data Sheets

2
Croatian / hrvatski jezik
ZIP

Data Sheets

2
Hungarian / Magyar
ZIP

Data Sheets

2

Declarations of Conformity

1
Italian / Italiano
ZIP

Data Sheets

2
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

2
Dutch / Nederlands
ZIP

Data Sheets

2
Polish / Język polski
ZIP

Data Sheets

2

Declarations of Conformity

1
Romanian / română
ZIP

Data Sheets

2
Slovenian / slovenščina
ZIP

Data Sheets

2

Declarations of Conformity

1
Serbian (Latin) / srpski
ZIP

Data Sheets

2

Declarations of Conformity

1
Swedish / Svenska
ZIP

Data Sheets

2
BA544-40-B-A03C-01 x 1.0 Pcs
BA544-40-B-A03C-01
flanged ball valve series BA544-B-A3C; ATEX II 2 G/D T4; bare shaft; 3-way-type; full bore; body AISI 316L polished; ball AISI 316L; seals PTFE/FKM; sealing on three ports; medium temperature -20...+170°C; nominal diameter 40mm; pressure range 0...20bar; flange ANSI150; length 200mm; ball L; flange ISO5211 F07; square 17mm; free of oil and grease for oxygen; incl. inspection certificate EN-10204-3.1; for material, pressure, function and tightness
Pneumatic actuator PAS1254
PAS1254 x 1.0 Pcs
Pneumatic actuator PAS1254
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 125mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 91,3Nm
04812007003 x 1.0 Pcs
04812007003
Mounting bridge; Zinc plated steel; F10-F07; Height 80mm
IV/00163/17 x 1.0 Pcs
IV/00163/17
Bolt; 1.4305; Diameter 30mm; Height of the bolt 79mm; Male square 17mm; Height of the male square 19mm; Female square 17mm; Height of the female square 15mm
