BA676-12-S0

Name: BA676-12-S0
Brand: STASTO
SKU: BA676-12-S0

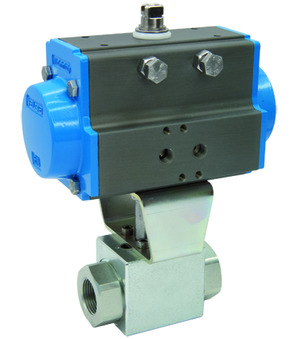

Ball valve with pneumatic actuator; Female thread; Body Zinc plated steel; Ball Stainless steel; Seals PEEK/NBR; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C; G 1/2"; Nominal diameter 13mm; Pressure range 0-350bar; Length 85mm; Actuator PAS0855

Intrastat No.: 84818081
Country of origin: Italy
Weight: 5.92 Kg
Short Itemnumber: BA67612S0

ball valve with pneumatic actuator; female thread; body zinc plated steel; ball stainless steel; seals PEEK/NBR; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+100°C; G 1/2"; nominal diameter 13mm; pressure range 0-350bar; length 85mm; actuator PAS0855

On request

This combination does not exist.

Availability:

Specifications
Spare Parts

No Specifications

BKH-G1/2-13-34631-B0FA x 1.0

BKH-G1/2-13-34631-B0FA

Ball valve, PN500, G1/2" DN13, body steel galvanised, ball seal PEEK, O-rings NBR drilled for actuator mounting F03

Add to Cart

PAS0855 x 1.0

Pneumatic actuator PAS0855

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 28,7Nm

Add to Cart

04805007001 x 1.0

04805007001

Mounting bridge; Zinc plated steel; Flange 1: F03/32mm; Flange 2: F05; Height 50mm

Add to Cart

A4/457/04 x 1.0

A4/457/04

Bolt; 1.4305; Diameter 20mm; Height of the bolt 47mm; Male square 14mm; Height of the male square 13mm; Female square 9mm; Height of the female square 8mm
