BA686-38-D0-A03G

BA686-38-D0-A03G

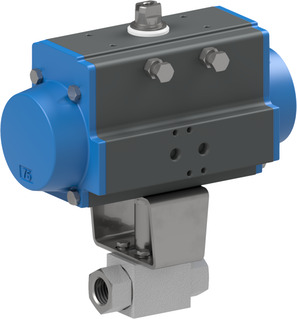

Ball valve with pneumatic actuator; Female thread; Body, Ball 1.4571; Seals PEEK(ATEX)/FKM; With erosion protection ring; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+200°C; G 3/8"; Nominal diameter 10mm; Pressure range 0...500bar; Actuator PAD075; Incl. Inspection certificate EN-10204-3.1 For material, pressure, function and tightness; Incl. ATEX-certificate; Free of oil and grease for oxygen

Intrastat No.: 84818081
Country of origin: Germany
Weight: 5.3 Kg
Short Itemnumber: BA68638D0A03G
https://www.stasto.hu/web/image/product.template/146371/image_1920?unique=1fc88cc

ball valve with pneumatic actuator; female thread; body, ball AISI 316Ti; seals PEEK(ATEX)/FKM; with erosion protection ring; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+200°C; G 3/8"; nominal diameter 10mm; pressure range 0...500bar; actuator PAD075; incl. inspection certificate EN-10204-3.1 for material, pressure, function and tightness; incl. ATEX-certificate; free of oil and grease for oxygen

999.999,00 € 999999.0 EUR 999.999,00 €

On request

  • Design

This combination does not exist.

Availability:
Contact Us

Share

Design ATEX
BA686-38-B-A03G x 1.0
High pressure ball valve BA686-38-B-A03G
High pressure ball valve Series BA686-B-A03G; Female thread; Drilled for mounting an actuator; Body, Ball 1.4571/1.4404; Seals PEEK(ATEX)/FKM; With erosion protection ring; For gases; Medium temperature -20...+100°C; Free of oil and grease; Incl. Inspection certificate EN-10204-3.1 For material, pressure, function and tightness; Incl. ATEX-certificate; G 3/8"; Nominal diameter 10mm; Pressure range 0…500bar; Length 72mm; Flange ISO5211 F03; Square 9mm
Add to Cart
Pneumatic actuator PAD075
PAD075 x 1.0
Pneumatic actuator PAD075
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 75mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 66Nm
Add to Cart
04806007007 x 1.0
04806007007
Mounting bridge; Zinc plated steel; Flange 1: F03/F04mm; Flange 2: F05; Height 50mm; Mounting table for RI3030
Add to Cart
A4/223/96 x 1.0
A4/223/96
Bolt; 1.4305; Diameter 20mm; Height of the bolt 43mm; Male square 14mm; Height of the male square 15mm; Female square 9mm; Height of the female square 10mm
Add to Cart
Accessory Products
Certificate-MHA-ATEX
SYS-111-03
Certificate-MHA-ATEX
