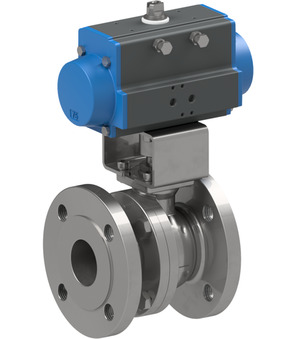

Flanged ball valve with pneumatic actuator BA778-65-S0-A

Name: Flanged ball valve with pneumatic actuator BA778-65-S0-A
Brand: STASTO
SKU: BA778-65-S0-A

flanged ball valve with pneumatic actuator; fire-safe; TA-Luft; length according to EN558−1R27; housing zinc plated steel; ball AISI 304; seals PTFE-reinforced/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+198°C; nominal diameter 65mm; pressure range 0-16bar; flange PN16; length 170mm; actuator PAS1155

Intrastat No.: 84818081
Country of origin: Italy
Short Itemnumber: BA77865S0A

On request

DN
- 65 mm
Length
- 170 mm
Flange
- PN16
Pressure range
- 0...16 bar
Actuator
- PAS1155
Brand
- STASTO

This combination does not exist.

Availability:

See availability

Technical specifications

Pressure range	0...16 bar
DN	65 mm
Flange	PN16
Length	170 mm

All specifications (5)

Specifications
Spare Parts

Pressure range	0...16 bar
DN	65 mm
Flange	PN16
Length	170 mm
Brand	STASTO

BA778-65-L-A x 1.0 Pcs

Flanged ball valve BA778-65-L-A

flanged ball valve; ATEX II 2 G/D; fire-safe; TA-Luft; length according to EN558−1R27; full bore; housing zinc plated steel; ball AISI 304; seals PTFE-reinforced/FKM; medium temperature -10...+198°C; nominal diameter 65mm; pressure range 0-16bar; flange PN16; length 170mm

PAS1155 x 1.0 Pcs

Pneumatic actuator PAS1155

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 115mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 71,1Nm

RI3527 x 1.0 Pcs
