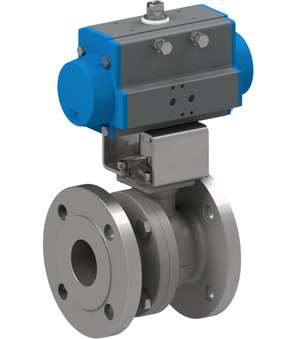

Flanged ball valve with pneumatic actuator BA779-50-S0-A3C

Name: Flanged ball valve with pneumatic actuator BA779-50-S0-A3C
Brand: STASTO
SKU: BA779-50-S0-A3C

flanged ball valve with pneumatic actuator; ATEX II 2 G/D; fire-safe; TA-Luft; length according to EN558−1R27; housing, ball AISI 304L; seals PTFE/Graphoil/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; nominal diameter 50mm; pressure range 0-40bar; flange PN40; length 150mm; actuator PAS1005; incl. inspection certificate EN-10204-3.1; for material, pressure, function and tightness

Intrastat No.: 84818081
Country of origin: Italy
Short Itemnumber: BA77950S0A3C

On request

DN
- 50 mm
Length
- 150 mm
Flange
- PN40
Design
- ATEX
Pressure range
- 0...40 bar
Actuator
- PAS1005
Brand
- STASTO

This combination does not exist.

Availability:

See availability

Technical specifications

Pressure range	0...40 bar
DN	50 mm
Flange	PN40
Length	150 mm

All specifications (6)

Specifications
Spare Parts

Pressure range	0...40 bar
DN	50 mm
Flange	PN40
Length	150 mm
Design	ATEX
Brand	STASTO

BA779-50-L-A3C x 1.0 Pcs

BA779-50-L-A3C

flanged ball valve; ATEX II 2 G/D; fire-safe; TA-Luft; length according to EN558−1R27; full bore; housing, ball AISI 304L; seals PTFE/Graphoil/FKM; medium temperature -20...+160°C; nominal diameter 50mm; pressure range 0-40bar; flange PN40; length 150mm; incl. inspection certificate EN-10204-3.1; for material, pressure, function and tightness

PAS1005 x 1.0 Pcs

Pneumatic actuator PAS1005

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 100mm; Flange ISO5211 F07/F10; Female square 17mm; Torque at 5,5bar 42,3Nm

RI3522 x 1.0 Pcs
