ball valve with pneumatic actuator BA859-10-D0-01

Price.

571,50 €
Other materiales - A03 Store
  1. Products
  2. Armatures
  3. Ball valves - automatically operated
  4. Other materiales - A03
  5. Other materiales - A03
  6. BA859-10-D0-01
ball valve with pneumatic actuator BA859-10-D0-01
142038
142038
102,70 €
102,70 €
SK-CVRSB3-15-003
SK-CVRSB3-15-003
116,00 €
116,00 €

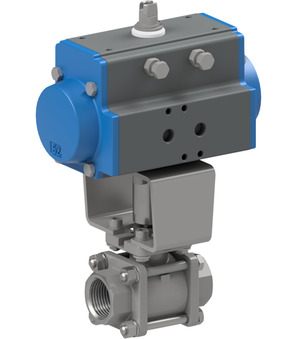

ball valve with pneumatic actuator BA859-10-D0-01

ball valve with pneumatic actuator series BA859-D0-01; female thread; body, ball AISI 316; seals PTFE-fibre-glass-reinforced/FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; RP 1"; nominal diameter 25mm; pressure range 0-40bar; length 92mm; actuator PAD063; mounting kits stainless steel

Intrastat No.: 84818081
Country of origin: Italy
Weight: 3.4 Kg
Short Itemnumber:BA85910D001
https://www.stasto.hu/web/image/product.template/217972/image_1920?unique=ffae3cf

ball valve with pneumatic actuator series BA859-D0-01; female thread; body, ball AISI 316; seals PTFE-fibre-glass-reinforced/FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; RP 1"; nominal diameter 25mm; pressure range 0-40bar; length 92mm; actuator PAD063; mounting kits stainless steel

571,50 € 571.5 EUR 571,50 €

ár kérésre

  • Female thread
  • DN
  • Length
  • Pressure range
  • Actuator

This combination does not exist.

Availability:
Contact Us
dimension
Female thread RP 1"
DN 25 mm
Length 92 mm
pressure
Pressure range 0...40 bar
characteristics
Actuator PAD052
ball valve made of stainless steel BA859-10-L
BA859-10-L x 1.0
ball valve made of stainless steel BA859-10-L
ball valve made of stainless steel series BA859; full bore; three-parts type; female thread; body, ball AISI 316; seals PTFE-fibre-glass-reinforced/FKM; medium temperature -20...+160°C; RP 1"; nominal diameter 25mm; pressure range 0...40bar; length 92mm
Add to Cart
Pneumatic actuator PAD063
PAD063 x 1.0
Pneumatic actuator PAD063
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 36Nm
Add to Cart
ATE0504 x 1.0
ATE0504
Mounting bridge; Material 1.4301; Flange 1 F05; Flange 2 F04; Height 60mm
Add to Cart
IV/00127/15 x 1.0
IV/00127/15
Bolt; 1.4305; Diameter 25mm; Height of the bolt 49mm; Male square 14mm; Height of the male square 14mm; Two flat 8mm; Two flat height 11,5mm
Add to Cart
