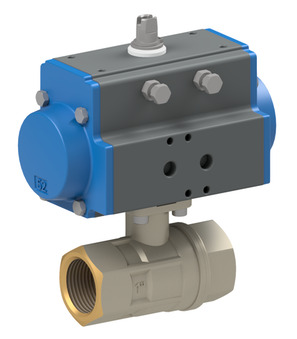

Ball valve with pneumatic actuator BAB1-006-BLTV-D0B-ABS51-SCN02400-C003-32-6

Ball valve with pneumatic actuator BAB1-006-BLTV-D0B-ABS51-SCN02400-C003-32-6

BAB1-006-BLTV-D0B
Ball valve with pneumatic actuator Series BAB1; Body, Ball Brass; Seals PTFE/FKM/EPDM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 1"; Nominal diameter 25mm; Pressure range 0-40bar; Length 90mm; Actuator PAD052
ABS51
Mounted pilot valve Series ABS; NAMUR; Silencer; Standard coil C001; Connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); Actuator PAD052-270
SCN02400
Coil Type SCN; Connector size 32mm; Voltage 24VDC
C003-32-6
Connector; Connector size 32mm; Standard; Voltage 0...250VAC/DC

Kugelhahn mit Druckluftdrehantrieb Serie BAB1
Kugelhahn mit Druckluftdrehantrieb Serie BAB1
Intrastat No.: 84818081
Country of origin: Italy Made in Europe
Weight: 2.283 Kg
Short Itemnumber: BAB1006BLTVD0BABS51SCN02400C003326
https://www.stasto.hu/web/image/product.template/200136/image_1920?unique=921a7d7

BAB1-006-BLTV-D0B
ball valve with pneumatic actuator series BAB1; body, ball brass; seals PTFE/FKM/EPDM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; RP 1"; nominal diameter 25mm; pressure range 0-40bar; length 90mm; actuator PAD052
ABS51
mounted pilot valve series ABS; NAMUR; silencer; standard coil C001; connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); actuator PAD052-270
SCN02400
coil type SCN; connector size 32mm; voltage 24VDC
C003-32-6
connector; connector size 32mm; standard; voltage 0...250VAC/DC

463,60 € 463.6 EUR 463,60 €

ár kérésre

excl. tax
  • Diameter
  • Male thread
  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • Female thread
  • DN
  • Length
  • Function
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Voltage type
  • Switching capacity
  • Pressure range
  • Contact material
  • Material of case
  • Coil
  • Actuator
  • Actuator 2

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...40 bar
Female thread RP 1"
DN 25 mm
Length 90 mm
All specifications (6)
Documents
Data sheets, drawings and CAD files
Pressure range 0...40 bar
Female thread RP 1"
DN 25 mm
Length 90 mm
Voltage 24VDC
Design Standard

BAB1-006-BLTV-D0B-ABS51-SCN02400-C003-32-6
